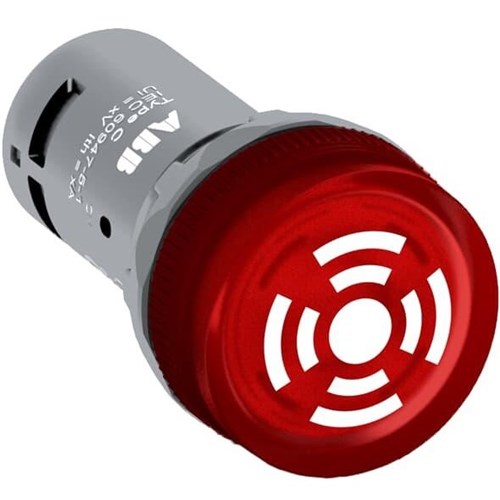

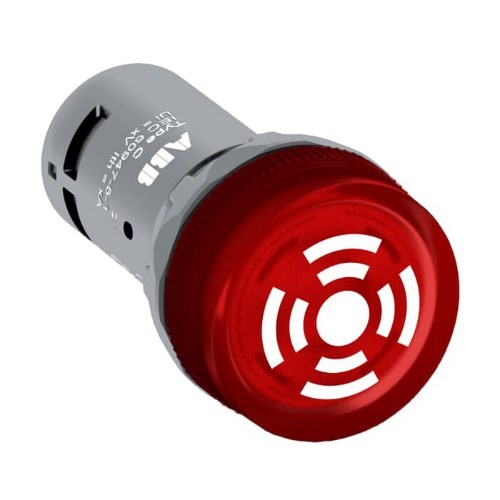

ABB CB1-613R Buzzer Illuminated 230VAC/DC Red Pulsation Output 70mA 60mcd

Product Code: CB1-613R

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Buzzer
Brand ABB
Colour Red
Degree of Protection IP66 (Front), IP20 (Terminals)
Depth 55 mm
Height 30 mm
Illumination Illuminated
LED Colour Red
Light and Sound Output Type Pulsation
Lumens 60 mcd
Operational Temperature -25 to 70 deg C
Rated Current 70 mA
Rated Frequency 50/60 Hz
Rated Voltage 230 VAC/VDC
Terminal Type Screw
Tightening Torque 0.9 N-m
Width 30 mm
