Specifications

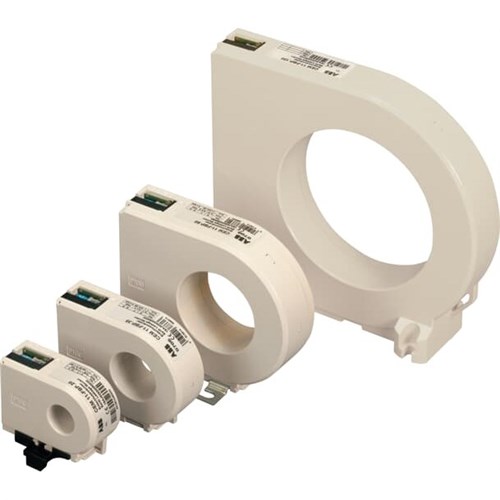

Product Type	Earth Leakage Monitor
Brand	ABB
Cable Length	190 mm
Rated Control Supply Voltage (Us)	24 V DC
Suitable For	UMC100-FBP; UMC100.3
Current Setting Range	0.3-13.6 A
Power Loss	0.2 W
Rated Frequency	50 / 60 Hz
Rated Voltage	24 VDC
Connecting Capacity	1× 0.75–1.5 mm²
Mounting Type	Screw; any position
Tightening Torque	0.6-1 N-m Auxiliary Circuit, 0.6-1 N-m Control Circuit
Wire Stripping Length	7 mm
Height	38 mm
Length	190 mm
Weight	940 g
Width	210 mm
IP Rating	IP20
Standards and Approvals	IEC/EN 60947-1,IEC/EN 60947-4-1
Standards	IEC/EN 60947-1; IEC/EN 60947-4-1, UNSPSC 41113645
