Specifications

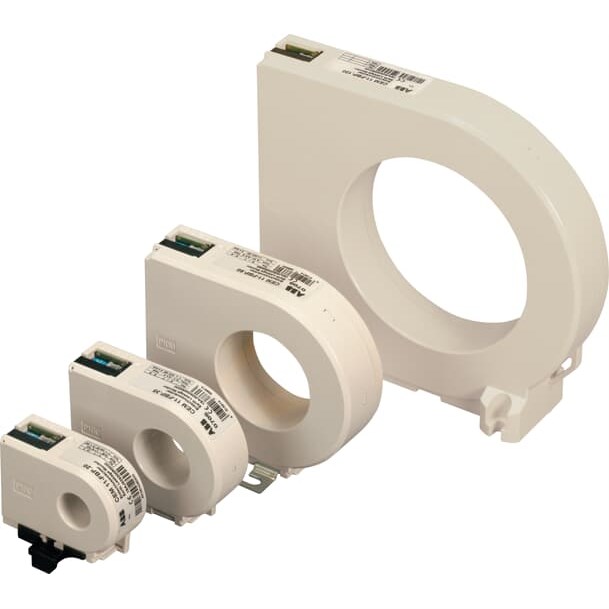

Product Type	Leakage Monitor
Brand	ABB
Cable Length	79 mm
Connecting Capacity	(1) 0.75-1.5 sq-mm
Degree of Protection	IP20
Height	31 mm
Mounting Type	35 x 15 mm DIN Rail with Adapter
Power Loss	0.2 W
Rated Frequency	50/60 Hz
Rated Voltage	24 VDC
Setting Range	0.1-3.4 A
Standards and Approvals	IEC/EN 60947-1,IEC/EN 60947-4-1
Suitable For Use With	UMC100-FBP UMC100.3
Tightening Torque	0.6-1 N-m Auxiliary Circuit, 0.6-1 N-m Control Circuit
Weight	200 g
Width	100 mm
Wire Stripping Length	7 mm
