Specifications

Product Type	Change-over switch
Brand	ABB
Series	OT3200E04CP
Application	Manual change-over switch
Position of Line Terminals	Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)	12 kV
Rated Insulation Voltage (Ui)	1000 V
Rated Operating Voltage	1000 V
Rated Permanent Current at AC-21, 400 V	3200 A
Rated Short Time Withstand Current (Icw)	50000 A
Power Loss	95 W
Transition Type	Open
No. of Poles	4
Padlock Locking	Handle padlockable in the 0-position
Depth	325 mm
Height	410 mm
Weight	88600 g
Width	730 mm
Pollution Degree	3
IP Rating	IP20
Standards and Approvals	CE, DNV

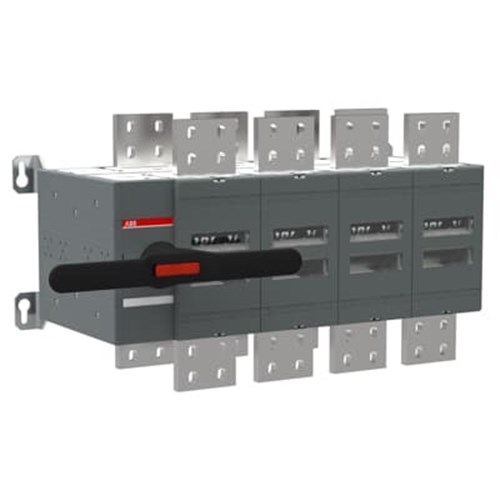

ABB CHANGE-OVER SWITCH OT3200E04CP
