Specifications

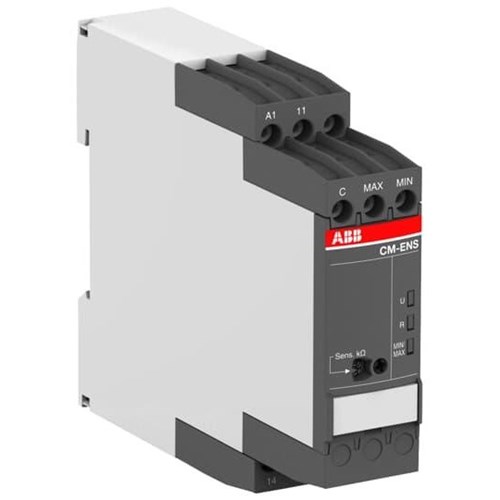

Product Type	Liquid level monitoring relay
Brand	ABB
Series	CM-ENS.1
Function	Liquid level monitoring and control; fill or drain applications
Electrical Endurance	100000 cycle
Over Voltage Category	III
Rated Control Supply Voltage (Us)	110 to 130 V AC; 220 to 240 V AC
Rated Insulation Voltage (Ui)	300 V
Rated Operational Current AC-15 (Ie)	3 A
Contact Configuration	1CO SPDT
Measuring Range	5 to 100 kO
Output Type	1CO SPDT
Rated Current	4 A
Rated Frequency	50/60 Hz
Rated Voltage	110-130 VAC, 220-240 VAC
Terminal Type	Screw connection
Rated Operational Current AC-12 (Ie)	4 A
Rated Operational Current DC-12 (Ie)	4 A
Rated Operational Current DC-13 (Ie)	2 A
Time Range	Maximum 1.3 s start-up time; maximum 1000 ms measuring cycle
Minimum Switching Capacity	12 V / 10 mA
Rated Operational Voltage (AC/DC)	250 V AC
Output	1 c/o (SPDT) contact
Short-Circuit Protective Devices	6 A fast-acting (n/c contact); 10 A fast-acting (n/o contact)
Mechanical Durability	10000000 cycle
Colour	U: Green, R: Yellow
Conductor Cross Section Flexible	1 x 0.5 to 2.5 mm²; 2 x 0.5 to 1.5 mm²
Conductor Cross Section Solid Core	1 x 0.5 to 4 mm²; 2 x 0.5 to 2.5 mm²
Housing Material	UL 94 V-0
Mounting Type	35 x 15 mm DIN Rail, 35 x 7.5 mm DIN Rail
Depth	103.7 mm
Height	85.6 mm
Weight	0.153 kg
Width	22.5 mm
Pollution Degree	3
Storage Temperature	-40 to 85 °C
Operating Temperature	-25 to 60 °C
IP Rating	IP50 (housing); IP20 (terminals)
Standards and Approvals	IEC/EN 60947-5-1; IEC/EN 60255-27
