Specifications

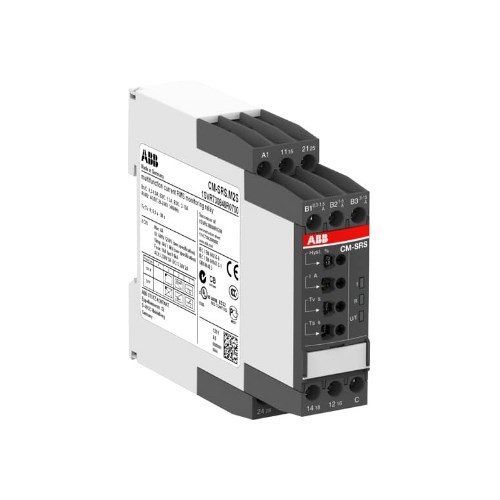

Product Type	Current monitoring relay
Brand	ABB
Series	CM
Function	Over- or undercurrent monitoring
Electrical Endurance	AC-12 100000 cycle
Rated Control Supply Voltage (Us)	24 ... 240 V AC/DC
Rated Insulation Voltage (Ui)	Measuring Circuit / Output Circuit 600 VOutput Circuit 1 / Output Circuit 2 250 VSupply Circuit / Measuring Circuit 600 VSupply Circuit / Output Circuit 250 V
Rated Operational Current AC-15 (Ie)	(230 V) 3 A
Measuring Range	0.3 ... 1.5 A1 ... 5 A3 ... 15 A
Output Type	2 C/O (SPDT) Contacts, Operating Principle Selectable
Terminal Type	Screw Terminals
Rated Operational Current AC-12 (Ie)	(230 V) 4 A
Rated Operational Current DC-12 (Ie)	(24 V) 4 A
Rated Operational Current DC-13 (Ie)	(24 V) 2 A
Minimum Switching Capacity	24 V10 mA
Short-Circuit Protective Devices	Output Circuit NO-F Type Fuses 10 A
Conductor Cross Section Flexible	Flexible with Ferrule 1x 0.5 ... 2.5 mm²Flexible with Ferrule 2x 0.5 ... 1.5 mm²Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm²Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²Flexible 1x 0.5 ... 2.5 mm²Flexible 2x 0.5 ... 1.5 mm²
Conductor Cross Section Solid Core	Rigid 1x 0.5 ... 4 mm²Rigid 2x 0.5 ... 2.5 mm²
Mechanical Endurance	Nr. Operations 30000000 cycle
Depth	103.7 mm
Height	85.6 mm
Weight	0.155 kg
Width	22.5 mm
Storage Temperature	-40 ... +85 °C
Operating Temperature	-25 ... +60 °C
IP Rating	IP50
Standards and Approvals	IEC 60364IEC/EN 61643UL
