Specifications

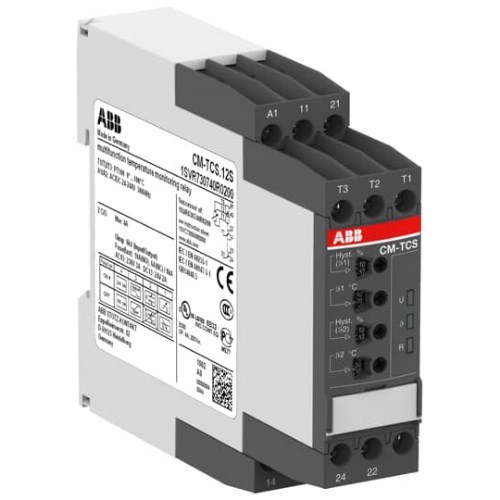

Product Type	Temperature Monitoring Relays
Brand	ABB
Function	Over Temperature Monitoring Under Temperature Monitoring Over And Under Temperature Monitoring
Contact Configuration	(2) 1CO or (1) 2CO
Measuring Range	0-100 deg C
Output Type	(2) 1CO, (1) 2CO
Rated Current	4 A
Rated Frequency	50/60 Hz
Rated Voltage	24-240 VAC/VDC
Sensor Type	PT100
Terminal Type	Screw
Mounting Type	35 x 15 mm DIN Rail, 35 x 7.5 mm DIN Rail
Height	85.6 mm
Weight	0.151 kg
Width	22.5 mm
Standards and Approvals	CAN/CSA,IEC/EAN,UL
