Specifications

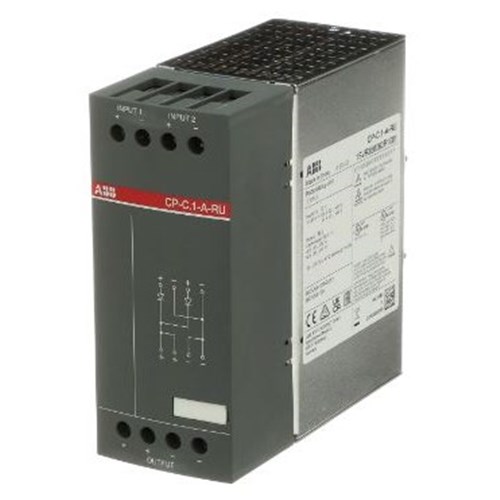

Product Type	Redundancy Unit
Brand	ABB
Series	C
Ambient Temperature	-25 to 70 deg C
Connecting Capacity	2.5-10 sq-mm Flexible, 2.5-16 sq-mm Rigid
Degree of Pollution	IP2
Degree of Protection	IP20
Depth	136 mm
Height	129.4 mm
Mounting Type	DIN Rail
Rated Current	40 A
Rated Voltage	10-58 VDC
Standards and Approvals	IEC/EN 63000, IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61204, UL 61010-2-201, UL 61010-1, IEC/EN 61010-1cULus, CE, RoHS, REACH
Tightening Torque	1.2 N-m
Width	56.4 mm
Wire Stripping Length	10 mm
