Specifications

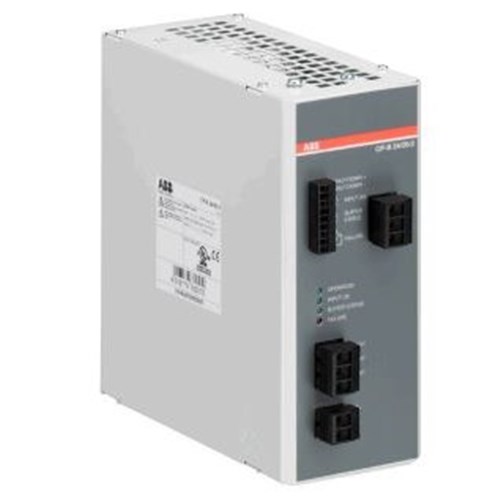

Product Type	Buffer module
Brand	ABB
Series	CP-B
Input Voltage AC	23.9 ... ..27 V DC
Input Voltage DC	24 V DC
No. of Phases	1
Output Current - Nominal	20 A
Output Power	480 W
Output Voltage - Nominal	24 V DC
Efficiency	> 95 %
Rated Current	20 A
Rated Power	480 W
Rated Voltage	24 VDC
Terminal Type	Screw Terminal
Housing Material	Steel sheet powdered
Model	Buffer Module
Mounting Style	DIN rail (IEC/EN 60715), snap-on mounting without any tool
Mounting Type	DIN Rail
Wire Stripping Length	7 mm
Weight	2.2 kg
Operating Temperature	-40 to 60 deg C
IP Rating	Housing IP20 Terminals IP20
Standards and Approvals	CAN/CSA C22.2 No.107.1, IEC/EN 63000, EN 55011, IEC/EN 61000-6-2, IEC/EN 61000-6-4, IEC/EN 62040-2, UL 508, IEC/EN 61010-1
