Specifications

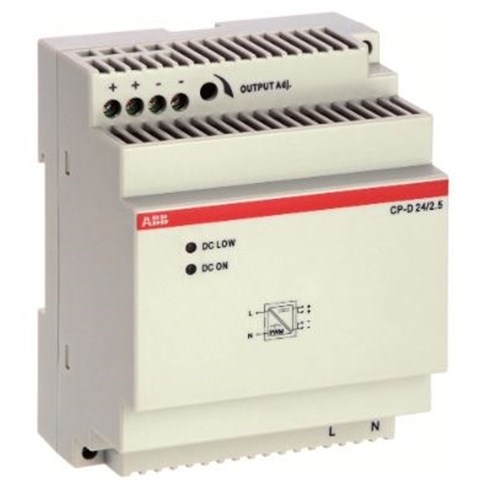

Product Type	Power supply
Brand	ABB
Series	CP - D
Input Voltage AC	90 ... 264 V AC
Input Voltage DC	120 ... 375 V DC
No. of Phases	1
Output Current - Nominal	2.5 A
Output Power	60 W
Output Voltage - Nominal	24 V DC
Output Voltage - Range	24 ... 28 V DC
Efficiency	0.86
Rated Current	2.5 A
Rated Frequency	50/60 Hz
Rated Power	60 W
Rated Voltage	90-264 VAC, 24 VDC
Terminal Type	Screw Terminal
Connecting Capacity	0.2-2.5 sq-mm Flexible, 0.2-2.5 sq-mm Rigid
Housing Material	Plastic
Mounting Style	DIN rail (IEC/EN 60715), snap-on mounting without any tool
Mounting Type	DIN Rail
Tightening Torque	0.7 N-m
Wire Stripping Length	7 mm
Depth	57.5 mm
Height	91 mm
Width	71 mm
Approvals / Conformity	CAN/CSA C22.2 No.107.1 CAN/CSA C22.2 No.223 CAN/CSA C22.2 No.60950 IEC/EN 63000 IEC 60950-1 IEC/EN 61000-6-2 IEC/EN 61000-6-3 UL 1310 UL 508 UL 60953
Pollution Degree	2
Operating Temperature	Operation -40 ... +70 °C
IP Rating	Housing IP20 Terminals IP20
Standards and Approvals	CAN/CSA C22.2 No.107.1, CAN/CSA C22.2 No.223, CAN/CSA C22.2 No.60950, IEC/EN 63000, IEC 60950-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, UL 1310, UL 508, UL 60950cULus, CE, RoHS, REACH
