Specifications

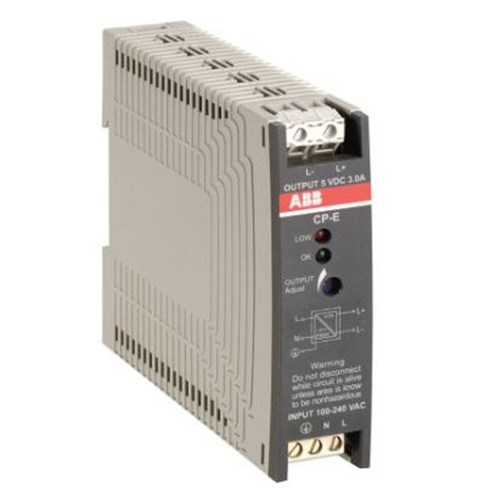

Product Type	Power Supply
Brand	ABB
Series	C
Ambient Temperature	-20 to 70 deg C
Connecting Capacity	0.2-2.5 sq-mm Flexible, 0.2-2.5 sq-mm Rigid
Degree of Protection	IP20
Depth	114 mm
Height	90 mm
Mounting Type	DIN Rail
Phase	1
Rated Current	0.75 A
Rated Frequency	50 Hz
Rated Power	18 W
Rated Voltage	90-264 VAC, 24 VDC
Standards and Approvals	ANSI/ISA-12.12, CAN/CSA C22.2 No.107.1, CAN/CSA C22.2 No.213, CAN/CSA C22.2 No.223, CAN/CSA C22.2 No.60950, IEC/EN 63000, IEC 60950-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, UL 1310, UL 508, UL 60950cULus, CE, RoHS, REACH
Tightening Torque	0.6 N-m
Width	22.5 mm
Wire Stripping Length	6 mm
