Specifications

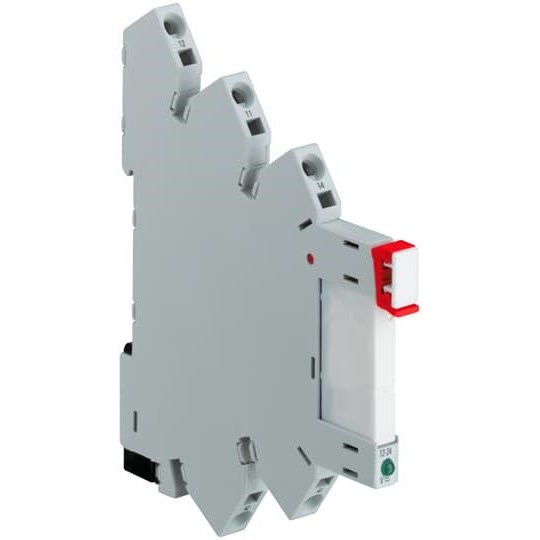

Product Type	Pluggable Interface relay
Brand	ABB
Series	CR-S
Actuating Voltage	230V AC/DC
No. of Change-Over Contacts	1
Contact Configuration	1CO SPDT
Electrical Connection	Spring Terminals
Rated Current	6A
Rated Voltage	250 V AC
Contact Material	AgSnO2
Model	Fully Assembled Interface Relay CR-S
Mounting Type	Socket
Depth	28 mm
Height	15 mm
Length	94.7 mm
Weight	0.03 kg
Width	5 mm
Operating Temperature	-40 to 55 deg C
IP Rating	IP20
Ambient Temperature	-40...+85 °C
Standards and Approvals	CAN/CSA IEC/EN UL
