Specifications

Product Type	DC Switch-disconnector
Brand	ABB
Series	OTDC
Application	Energy Storage System (ESS)
Position of Line Terminals	Top In - Bottom Out, Bottom In - Top Out
Rated Current (In)	1000 A
Rated Impulse Withstand Voltage (Uimp)	12 kV
Rated Insulation Voltage (Ui)	1500 V
Rated Operating Voltage	1500 V DC
Rated Short Time Withstand Current (Icw)	10 kA for 1 s; 63 kA for 0.1 s
Power Loss	120 to 128 W
Special Functions	No
Mechanical Life	10000
No. of Poles	4
Depth	148 mm
Height	211 mm
Weight	9700 g
Width	196.2 mm
Pollution Degree	3
IP Rating	Front IP20
Standards and Approvals	IEC 60947-1, IEC 60947-3, CCC, CE, UKCA, DNV GL

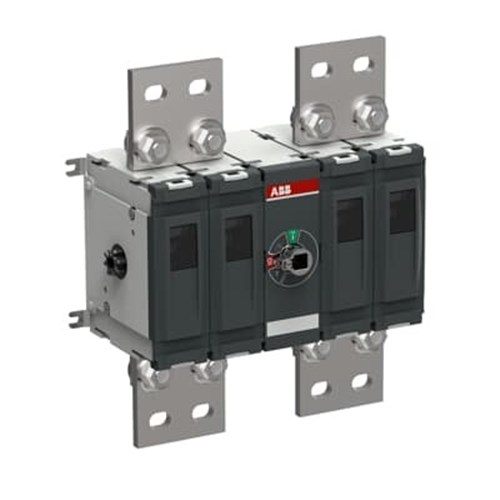

ABB DC SWITCH 1000A 1500V DC 4P SWITCH ONLY, HIGH SHORT CCT CENTRE MECHANISM OTDC1000FV22-ESS
