Specifications

Product Type	DC Switch-disconnector
Brand	ABB
Series	OTDC
Application	Photovoltaic
Position of Line Terminals	Top In - Bottom Out, Bottom In - Top Out
Rated Current (In)	100 A
Rated Impulse Withstand Voltage (Uimp)	12 kV
Rated Insulation Voltage (Ui)	1500 V
Rated Operating Voltage	1500 V DC
Rated Short Time Withstand Current (Icw)	10000 A
Power Loss	4 to 5.2 W
Special Functions	No
Mechanical Life	10000 cycles
No. of Poles	4
Depth	120 mm
Height	165 mm
Weight	3000 g
Width	224 mm
Pollution Degree	2
IP Rating	IP20
Standards and Approvals	IEC 60947-1, IEC 60947-3, CE, UKCA

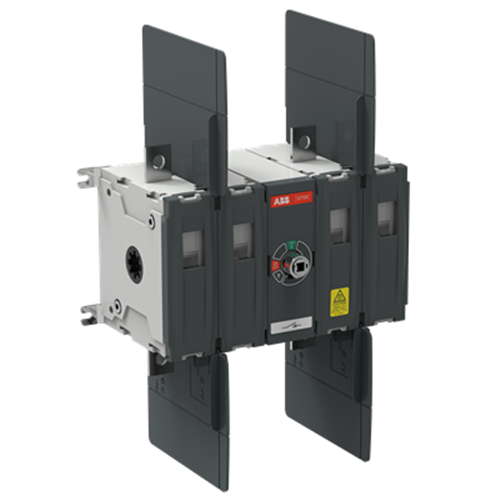

ABB DC SWITCH 100A 1500V DC 4P SWITCH ONLY, CENTRE MECHANISM OTDC100GV22
