Specifications

Product Type	DC Switch-disconnector
Brand	ABB
Series	OTDC
Application	Photovoltaic
Position of Line Terminals	Top In - Bottom Out, Bottom In - Top Out
Rated Current (In)	160 A
Rated Impulse Withstand Voltage (Uimp)	12 kV
Rated Insulation Voltage (Ui)	1500 V
Rated Operating Voltage	1000 V DC
Rated Short Time Withstand Current (Icw)	10 kA for 1 s; 5 kA for 0.1 s
Power Loss	16 W
Special Functions	No
No. of Poles	4
Depth	90.5 mm
Height	262 mm
Weight	2200 g
Width	185.4 mm
Pollution Degree	3
IP Rating	IP20
Standards and Approvals	IEC 60947-1, IEC 60947-3, CCC, CE, UKCA, DNV GL
Included Components	Terminal bolt kit

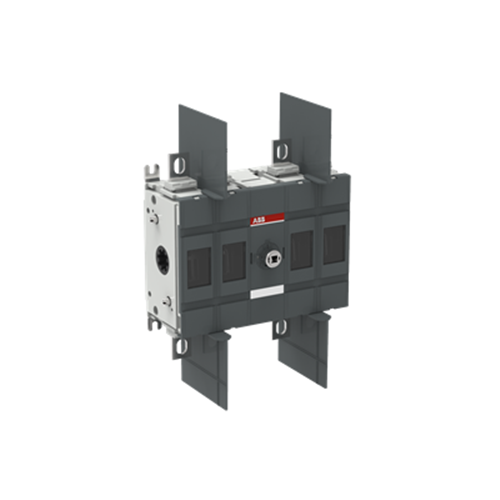

ABB DC SWITCH 160A 1000V DC 4P SWITCH ONLY, CENTRE MECHANISM OTDC160E22
