Specifications

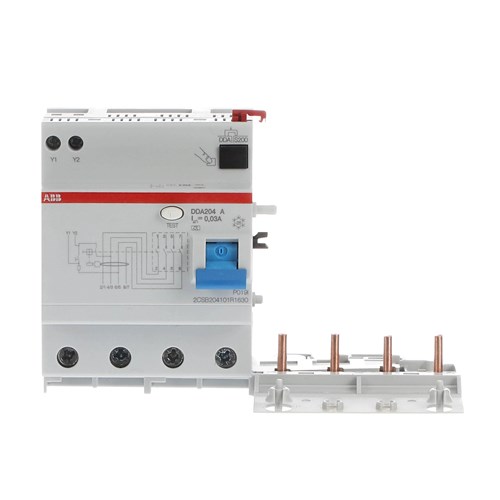

Product Type	Residual Current Device Block DDA200
Brand	ABB
Electrical Endurance	10000 cycle
No. of Poles (Total)	4P
Rated Impulse Withstand Voltage (Uimp)	4 kV
Rated Insulation Voltage (Ui)	acc. to IEC/EN 60664-1 500 V
Suitable For	MCBs S200 series and S300P
Power Loss	Total 7.6 W
Rated Current	63 A
Rated Frequency	50/60 Hz
Rated Voltage	230/400 V AC
Terminal Type	Bi-directional cylinder-lift terminal
Residual Current Type	Type A
Rated Residual Current	30 mA
Type of Residual Current	Type A
Cable Cross Section	25-25 sq-mm Rigid/Flexible
Conductor Cross Section Flexible	0 to 25 mm²
Conductor Cross Section Solid Core	0 to 25 mm²
Mechanical Endurance	20000 cycle
Depth	69 mm
Height	93 mm
Weight	0.395 kg
Width	140 mm
Width in No. of Modular Spacing	NA
Pollution Degree	2
Storage Temperature	-40 to 70 °C
Operating Temperature	-25 to 50 °C
IP Rating	IP4X (housing); IP2X (terminals)
Standards and Approvals	IEC/EN 61009-1 Annex G; IEC/EN 61009-2-1
