Specifications

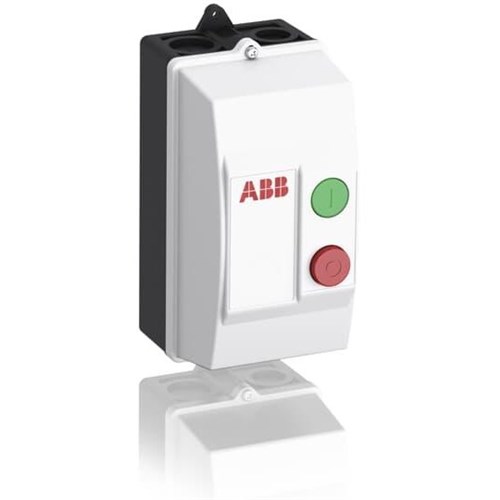

Product Type	Enclosed DOL Starter
Brand	ABB
No. of Auxiliary Contacts	1
Rated Control Supply Voltage (Us)	50 Hz 24 ... 60 V 60 Hz 24 ... 60 V DC Operation 20 ... 60 V
Rated Operational Current AC-1 <= 690V (Ie)	30 A
Rated Operational Current AC-3 400V (Ie)	18 A
Rated Operational Current AC-3 690V (Ie)	10.5 A
Rated Operational Power AC-3 400V (Pe)	7.5 kW
Rated Operational Power AC-3 690V (Pe)	9 kW
Rated Frequency	50 / 60 Hz
No. of Poles	3P
Depth	131 mm
Height	230 mm
Weight	0.82 kg
Width	107 mm
Standards and Approvals	CE Declaration of Conformity; UKCA Declaration of Conformity; UL Certificate; UL Listing Card
