Specifications

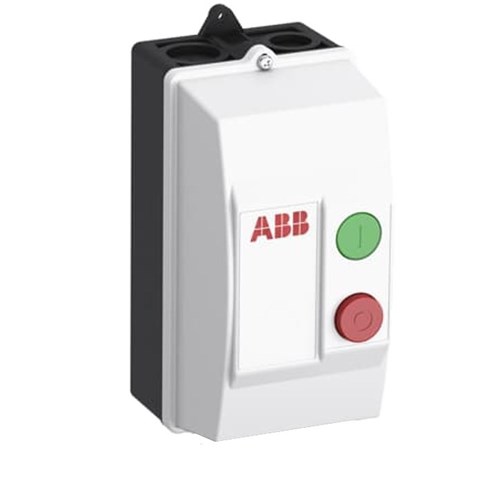

Product Type	Enclosed Direct-On-Line Starter
Brand	ABB
No. of Poles (Total)	3P
Rated Control Supply Voltage (Us)	100–250 V AC
Rated Operational Current AC-1 <= 690V (Ie)	(690 V) 40 °C 30 A
Rated Operational Current AC-3 400V (Ie)	(415 V) 60 °C 18 A
Rated Operational Current AC-3 690V (Ie)	(690 V) 60 °C 10.5 A
Rated Operational Power AC-3 400V (Pe)	(415 V) 9 kW
Rated Operational Power AC-3 690V (Pe)	(690 V) 9 kW
Rated Frequency	50 / 60 Hz
No. of Auxiliary Contacts (NO/NC)	1 NO + 0 NC
Depth	131 mm
Height	230 mm
Weight	0.82 kg
Width	107 mm
Standards and Approvals	IEC 60947-4-1
