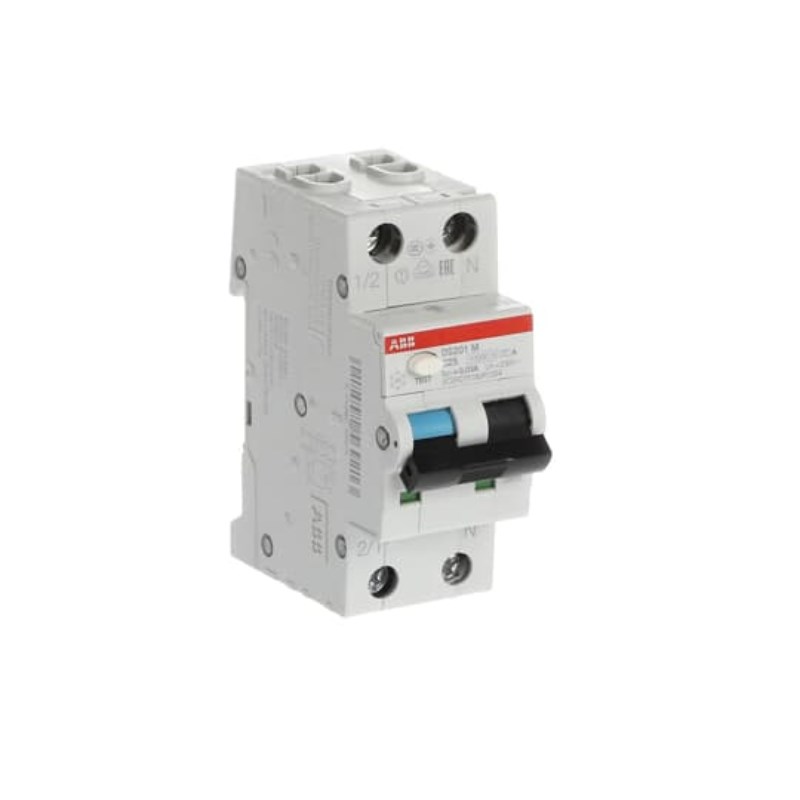

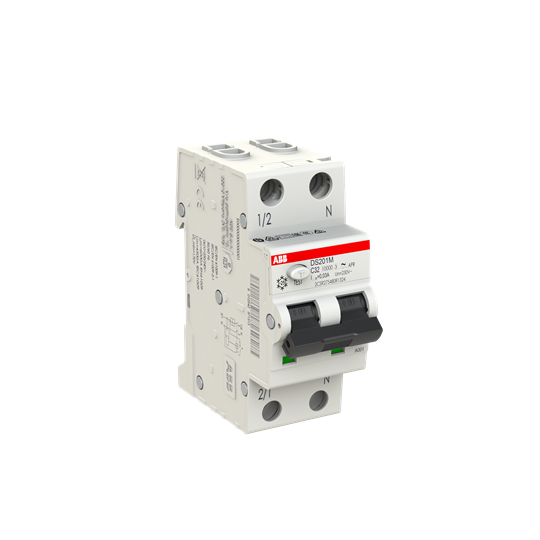

<p>When selecting a reliable and efficient Residual Current Circuit Breaker with Overcurrent Protection (RCBO), this particular model stands out for its robust specifications tailored to meet the demands of industrial and commercial applications. Designed to handle a rated current of 32 A, it ensures consistent performance in environments requiring high electrical durability, boasting up to 10,000 cycles.</p><p>One of the product&#39;s key features is its rated impulse withstand voltage of 4 kV and insulation voltage of 500 V, coupled with a standard operating voltage of 240 V. These parameters ensure that the RCBO can effectively manage electrical surges and provide reliable protection across various installations. Its breaking capacity reaches an impressive 15 kA, making it suitable for systems prone to higher fault currents.</p><p>The device is equipped with dual-pole protection and adheres to stringent safety standards—IEC/EN 61009-1 and IEC/EN 61009-2-1—ensuring compliance with global safety regulations. With degrees of protection rated at IP20/IP40, this RCBO offers substantial defense against dust ingress while being safe from finger contact in enclosed environments.</p><p>Installation is straightforward via DIN rail mounting, facilitating quick integration into existing setups. The screw clamp terminal type supports secure connections with a tightening torque requirement set at 2.8 N-m. It accommodates a wide range of cable cross-sections: solid core cables between 0.75-25 sq-mm and multi-wired cables from 0.75-16 sq-mm.</p><p>For those concerned about space constraints within electrical panels, this unit&#39;s compact dimensions—35 mm width by 85 mm height by 69 mm depth—and weight of just 200 g make it an ideal choice without compromising on functionality or reliability.</p><p>Operationally versatile across varying conditions, it performs efficiently within ambient temperatures ranging from -25&#176;C to +55&#176;C while maintaining optimal operation under both humid and dry conditions thanks to its pollution degree rating of IP2.</p><p>Safety indicators include clear contact position indication using red for ON and green for OFF states along with a blue flag toggle for fault detection—providing immediate visual confirmation during inspections or maintenance procedures.</p><p>In terms of connectivity options, the RCBO supports busbar connections ranging from 10-10 sq-mm as well as stranded or flexible wiring configurations up to specified limits ensuring flexibility in installation scenarios.</p><p>Finally, housed in RAL 7035 grey casing with overvoltage category III classification ensures that this RCBO not only meets but exceeds expectations when safeguarding your critical infrastructure components against unpredictable power disturbances while providing peace-of-mind through undelayed earthing switch operations and instantaneous characteristic response times—all vital elements contributing towards its overall reliability within demanding electrical environments.</p>
