Specifications

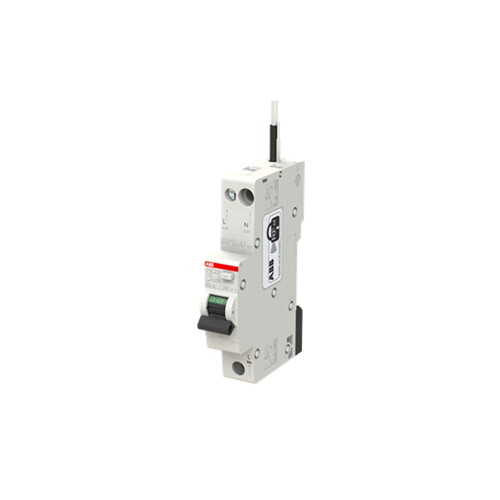

Product Type	Residual Current Breaker with Over-Current
Brand	ABB
Series	DSE201
Power Loss	5.2 W
Rated Current	32 A
Rated Frequency	50/60 Hz
Rated Short Circuit Current	6 kA
Rated Voltage	240 V
Terminal Type	Screw Clamp
Cable Cross Section	1-25 sq-mm 1-Solid Core, 1-16 sq-mm 4-Multi-Wired
Connecting Capacity	Busbar 10 sq-mm, Rigid 1-25 sq-mm, Flexible 1-16 sq-mm
Housing Colour	RAL 7035 Grey
Mounting Type	DIN Rail
Tightening Torque	1.2 N-m, 2.8 N-m
Wire Stripping Length	11 mm Top, 12.5 mm Bottom
Depth	69 mm
Height	100 mm
Weight	180 g
Width	18 mm
Standards and Approvals	IEC 61009-1, IEC 61009-2-2, AS/NZS 61009.1
