Specifications

Product Type	Change over Switch
Brand	ABB
No. of Auxiliary Contacts CO (SPDT)	1
No. of Auxiliary Contacts NC	0
No. of Auxiliary Contacts NO	0
No. of Poles (Total)	1
Rated Current	16 A
Terminal Type	Screw Terminals
Rated Operational Voltage (AC/DC)	acc. to EN 250 V AC acc. to UL 508 240 V AC
Conductor Cross Section Flexible	Flexible 1x0.75…2x2.5 mm²
Conductor Cross Section Solid Core	Solid 1x1…6 mm² Solid 2x2.5 mm²
Depth	68 mm
Height	85 mm
Weight	44 g
Width	9 mm
Width in No. of Modular Spacing	0.5
Storage Temperature	-40...+70 °C
Operating Temperature	-25...+55 °C
IP Rating	IP20
Standards and Approvals	EN60669-1 VDE0632-1 IEC60068-2-2 IEC60068-2-1 IEC60068-2-38 UL508 CB/CCC

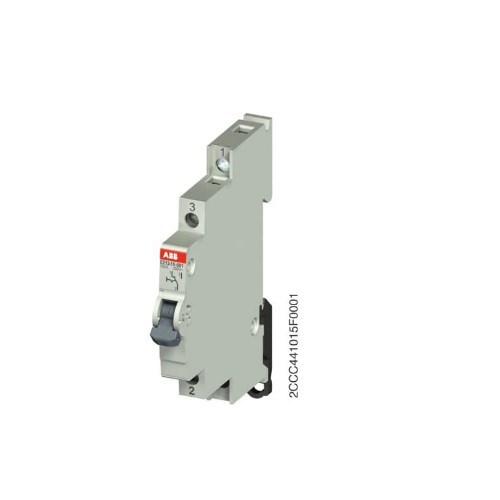

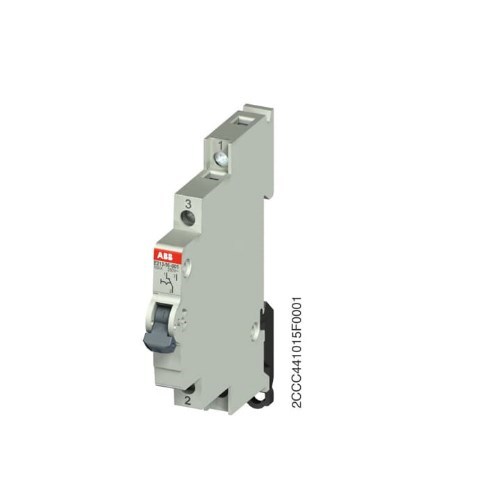

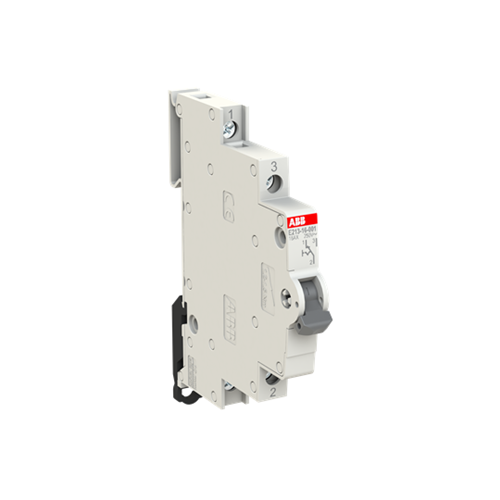

ABB E213-16-001 Changeover Switch SPDT 16A 250VAC 1NO
