Specifications

Product Type	Changeover Switch
Brand	ABB
Rated Impulse Withstand Voltage (Uimp)	6 kV
Contact Configuration	0NC+2NO
Rated Current	16 A
Rated Frequency	50/60 Hz
Rated Voltage	250 VAC
Switch Type	Double Interrupting Contacts
Colour	Grey
Connecting Capacity	Solid 1 x 1 - 6mm² Solid 2 x 2.5mm² Flexible 1 x 0.75 - 2 x 2.5mm²
Material	Copper
Tightening Torque	1.2-1.5 N-m
Depth	68 mm
Height	85 mm
Width	18 mm
Storage Temperature	-40 to 70 deg C
Operating Temperature	-25 to 55 deg C
IP Rating	IP20
Standards and Approvals	EN60669-1, VDE0632-1, IEC60068-2-2, IEC60068-2-1, IEC60068-2-38, UL508

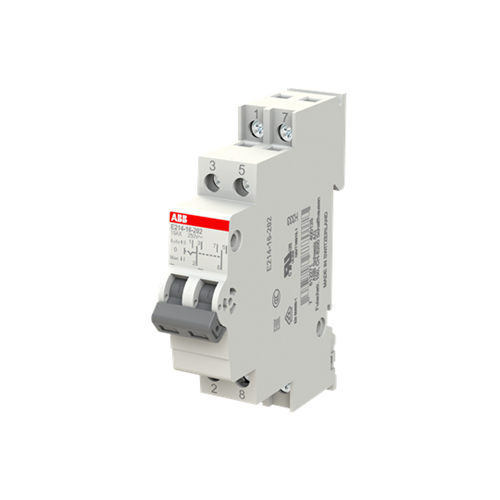

ABB E214-16-202 Group Switch SPDT 16A 250VAC 2NO
