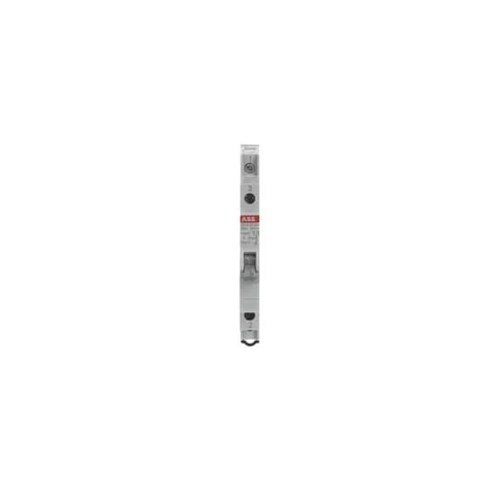

ABB E214-25-101 Changeover Switch SPDT 25A 250VAC 1NO

Product Code: E214-25-101

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Changeover Switch
Brand ABB
Rated Impulse Withstand Voltage (Uimp) 6 kV
Contact Configuration 0NC+1NO
Rated Current 25 A
Rated Frequency 50/60 Hz
Rated Voltage 250 VAC
Switch Type Double Interrupting Contacts
Colour Grey
Tightening Torque 1.2-1.5 N-m
Depth 68 mm
Height 85 mm
Width 9 mm
Storage Temperature -40 to 70 deg C
Operating Temperature -25 to 55 deg C
IP Rating IP20
Standards and Approvals EN60669-1, VDE0632-1, IEC60068-2-2, IEC60068-2-1, IEC60068-2-38, UL508
