Specifications

Product Type	Residual Current Device Block
Brand	ABB
Series	SACE Emax 2
Application	Protection, control, and monitoring of large electrical load
Air Circuit Breaker (Withdrawable)	Yes
Max. Rated Operation AC Voltage (Ue)	690 V AC
No. of Poles (Total)	3P
Rated Current (In)	2500 A
Rated Impulse Withstand Voltage (Uimp)	12 kV
Rated Insulation Voltage (Ui)	AC 1000 V
Short-time Withstand Current (Icw), 1 sec	66kA
Short-time Withstand Current (Icw), 3 sec	50kA
Suitable for	Residential, commercial, industrial
Type of Electrical Connection of Main Circuit	Withdrawable
Frame Size Rating	E2.2
Power Loss	550 W
Rated Frequency	50-60
Electrical Life	7000 cycle
Mechanical Life	20000 cycle

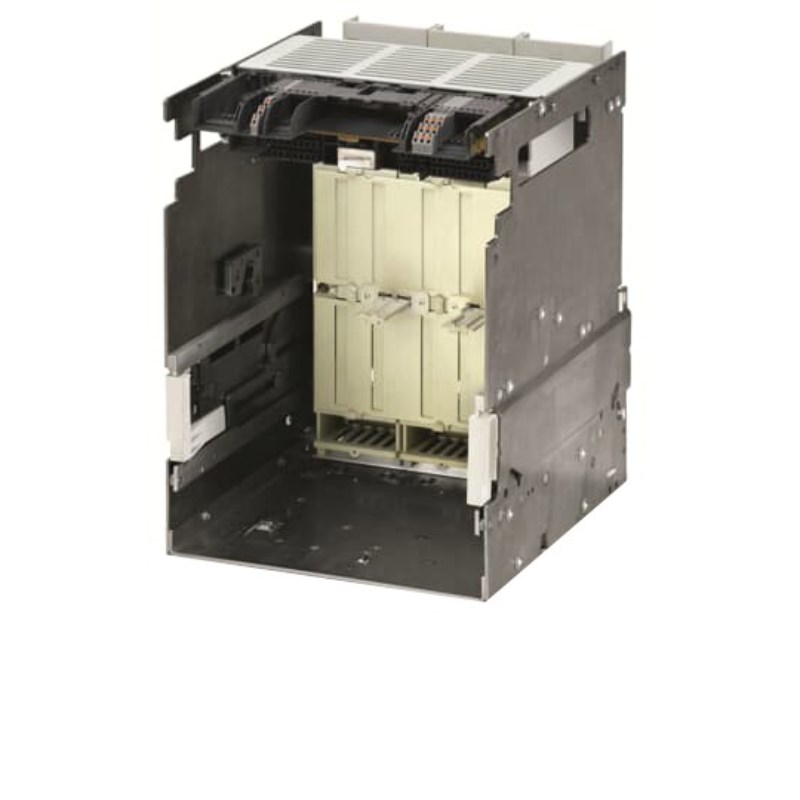

Cradle Number	1SDA073911R1
Mechanical Endurance	20000
Moving Part Number	1SDA073498R1
Depth	383 mm
Height	425 mm
Weight	84kg
Width	317 mm
Rated Surrounding Temperature without Derating	40 °C
Pollution Degree	3
Storage Temperature	-40…+70
Operating Temperature	-25°C … +70°C
IP Rating	IP20
Max. Altitude Before Derating	2000
Standards and Approvals	IEC/EN 61009-1 Ann. G; IEC/EN 61009-2-1

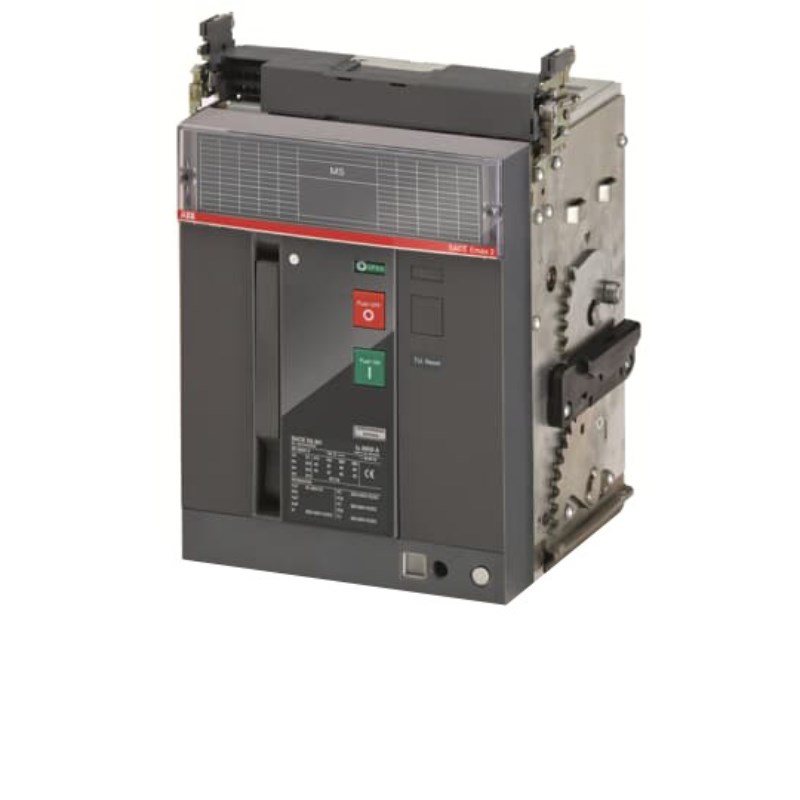

ABB E22N3NA25W Automatic ACB 2500A 3-P 66kA Withdrawable E2.2
