Specifications

Rated Operational Power AC-1/AC7a 230V 1 Phase (Pe)	5.8 kW
Rated Operational Power AC-1/AC7a 400V 3 Phase (Pe)	17.3 kW
Rated Operational Power AC-3/AC7b 230V 1 Phase (Pe)	1.3 kW
Rated Operational Power AC-3/AC7b 400V 3 Phase (Pe)	4 kW
Rated Operational Current AC-3/AC7b (le) 230 V1 phase	9A

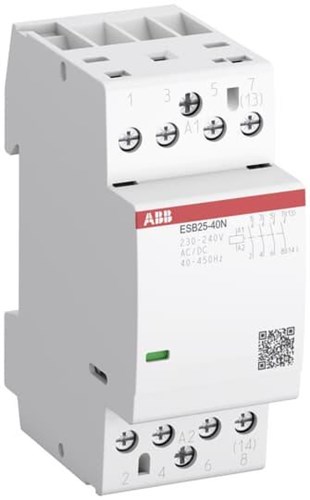

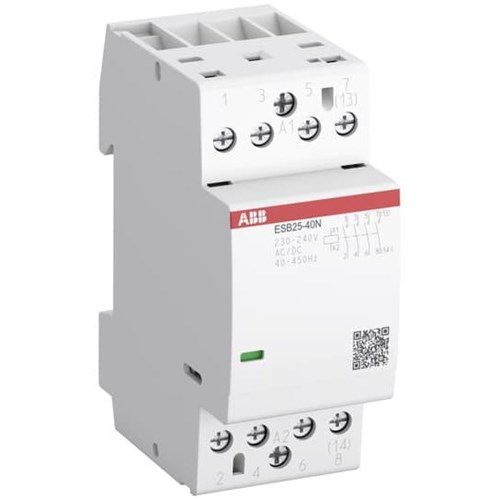

Product Type	Installation Contactors
Brand	ABB
No. of N/C Contacts	4
No. of Poles (Total)	4
Rated Control Supply Voltage (Us)	220 V DC 400 V AC
Rated Operational Current AC-1/AC7a (Ie)	25
Rated Frequency	50/60 Hz
Depth	65 mm
Height	85 mm
Weight	0.245 kg
Width	36 mm
Ambient Temperatures	-25 ... +55 °C
Standards and Approvals	IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 61095
