Specifications

Product Type	Twilight Switch
Brand	ABB
Series	TL-Line
Function	Sensor
Power Loss	0.4 W 0.9 W
Illuminant	2 … 200 lx
Max. Switching Power	1000 W 300 W 300 W 100 W
Rated Operational Voltage (AC/DC)	110 ... 230 V AC
No. Of Channels	1
Conductor Cross Section Solid Core	Solid 6 mm²
Depth	70 mm
Height	76 mm
Weight	8 g
Width	35 mm
Storage Temperature	-50 ... 80 °C
Operating Temperature	-40 ... 70 °C
IP Rating	Housing IP20
Standards and Approvals	EN 60669-1 EN 60662-2-1 EN 60730-1 CE

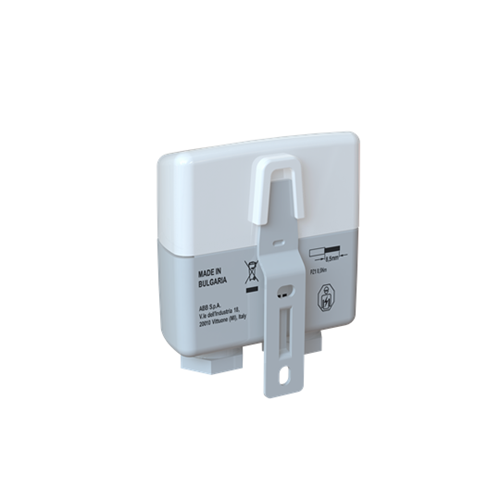

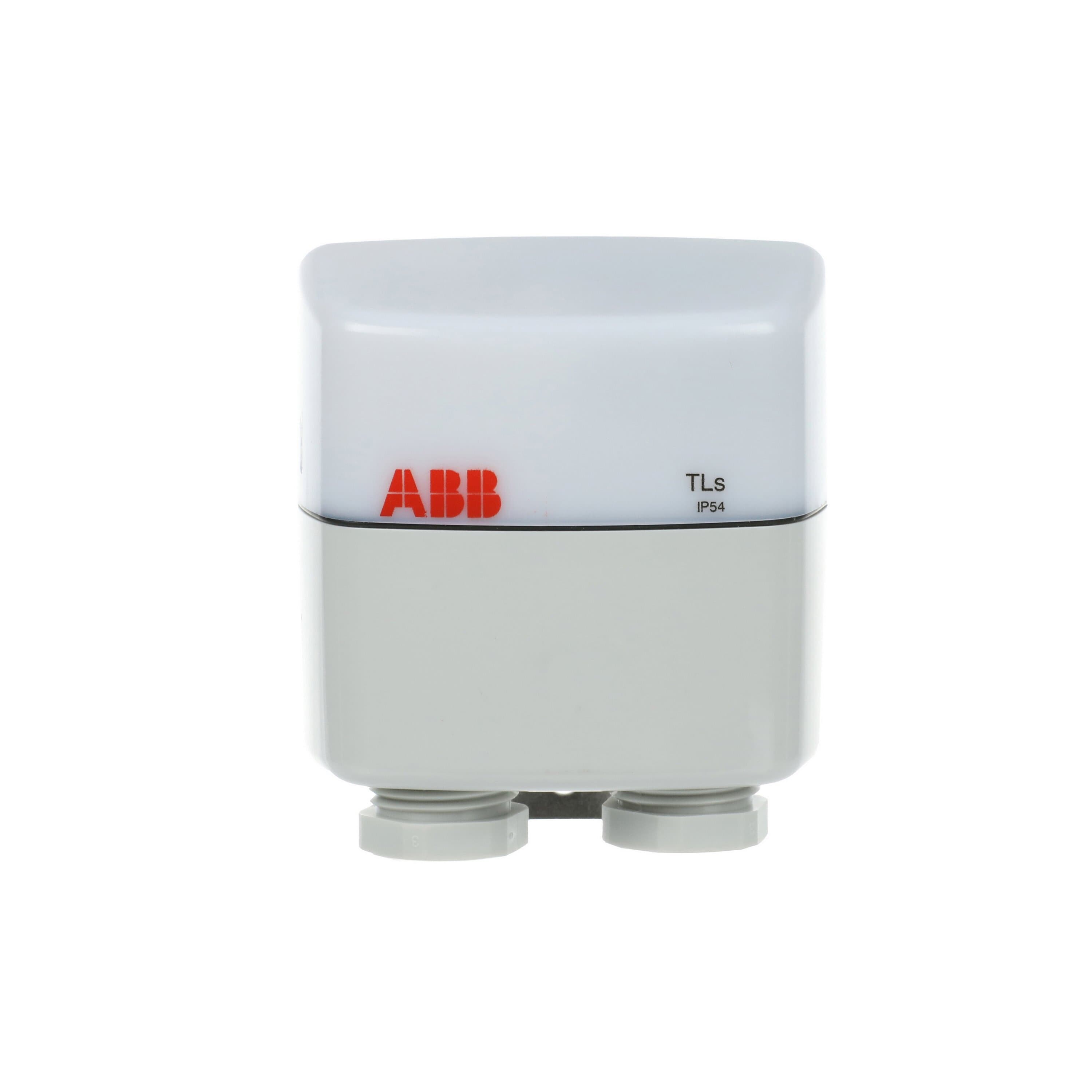

ABB EXTERNAL SENSOR FOR TL LINE TLs
