Specifications

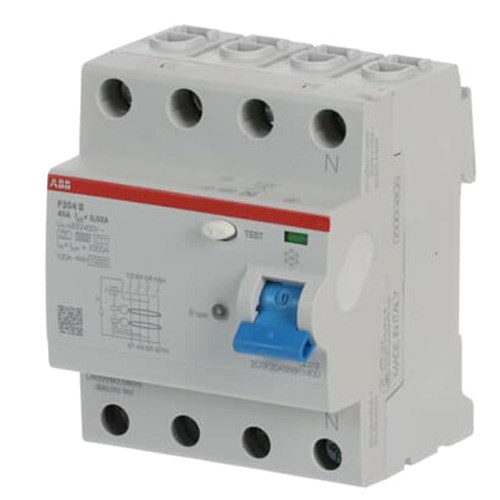

Product Type	Residual Current Circuit Breaker
Brand	ABB
Series	F200
Ambient Temperature	-25 to 40 deg C
Application	Commercial and Industrial
Breaking Capacity	30 mA
Cable Cross Section	0-25 sq-mm 4-Multi-Wired, 25-25 sq-mm 1-Solid-Core
Connecting Capacity	Busbar 10 sq-mm, Rigid 25-25 sq-mm, Flexible 25-25 sq-mm
Degree of Pollution	IP2
Degree of Protection	IP20/IP40
Depth	75 mm
Electrical Durability	2000 Cycles
Height	85 mm
Housing Material	Insulation Group I - II, RAL 7035
Mounting Type	DIN Rail
Number of Poles	4
Operating Characteristic	Instantaneous
Power Loss	1.92 W
Power Supply Connection	Arbitrary
Rated Current	40 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	4 kV
Rated Insulation Voltage	400 V
Rated Short Circuit Current	10 kA
Rated Voltage	230/400 VAC
Residual Current Type	Type B
Terminal Type	Screw Clamp
Test Voltage	150-253 V
Tightening Torque	3 N-m
Weight	460 g
Width	72 mm
Wire Stripping Length	12 mm
