Specifications

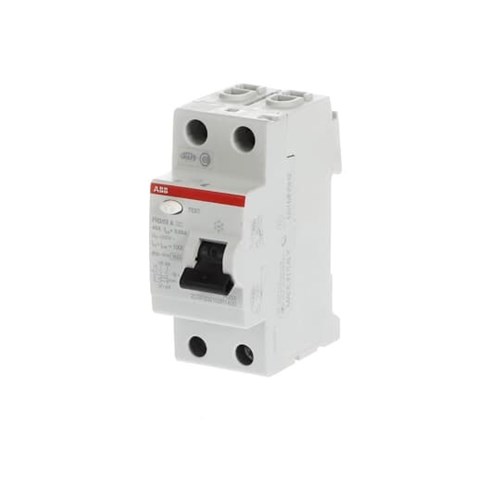

Product Type	Residual Current Circuit Breaker (RCCB)
Brand	ABB
Series	FH200
Electrical Endurance	10000 cycle
No. of Poles (Total)	2P
Rated Impulse Withstand Voltage (Uimp)	4 kV
Rated Insulation Voltage (Ui)	500 V AC
Breaking Capacity	1 kA
Power Loss	2.4 W
Rated Current	40 A
Rated Frequency	50 Hz
Rated Short Circuit Current	6 kA
Rated Voltage	230 V AC
Terminal Type	Failsafe bidirectional cylinder-lift terminals, top and bottom (shock protected)
Residual Current Type	Type A
Rated Residual Current	30 mA
Type of Residual Current	Type A
Operation Mode	Instantaneous
Cable Cross Section	10-25 sq-mm 4-Multi-Wired, 25-25 sq-mm 1-Solid-Core
Conductor Cross Section Flexible	10 to 25 mm²
Conductor Cross Section Solid Core	25 mm²
Mechanical Endurance	20000 cycle
Mounting Type	DIN Rail
Depth	69 mm
Height	85 mm
Weight	0.200 kg
Width	35 mm
Width in No. of Modular Spacing	2
Pole Width	17.5 mm
Rated Surrounding Temperature Without Derating	-5 to 40 °C
Storage Temperature	-40 to 70 °C
Operating Temperature	-5 to 40 °C
IP Rating	IP2X
Standards and Approvals	IEC/EN 61008; AS/NZS 61008
