Specifications

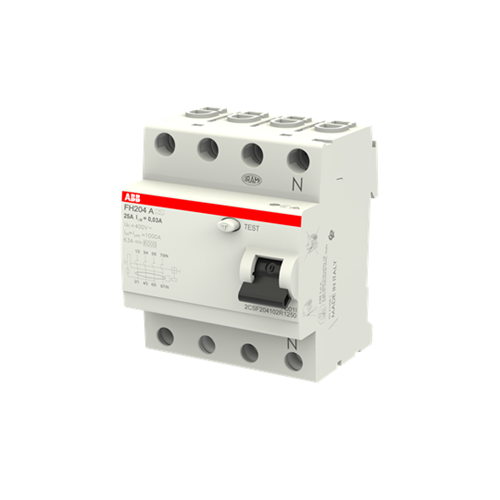

Product Type	Residual Current Circuit Breaker
Brand	ABB
Series	FH200
Ambient Temperature	-25 to 55 deg C
Breaking Capacity	1 kA
Connecting Capacity	Busbar 10 sq-mm, Rigid 25-25 sq-mm, Flexible 25-25 sq-mm
Degree of Protection	IP20/IP40
Depth	85 mm
Electrical Durability	10000 Cycles
Height	69 mm
Mounting Type	DIN Rail
Number of Poles	4
Operating Characteristic	Instantaneous
Power Loss	1.3 W
Power Supply Connection	Arbitrary
Rated Current	25 A
Rated Frequency	50 Hz
Rated Impulse Withstand Voltage	4 kV
Rated Insulation Voltage	500 V
Rated Short Circuit Current	6 kA
Rated Voltage	230/400 VAC
Residual Current Type	Type A
Standards and Approvals	IEC/EN 61008
Weight	350 g
Width	70 mm
