Specifications

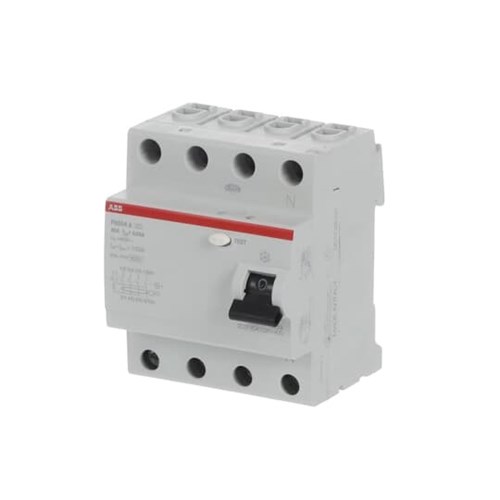

Product Type	Residual Current Circuit Breaker
Brand	ABB
Series	FH200
Ambient Temperature	-5 to 40 deg C
Breaking Capacity	1 kA
Cable Cross Section	10-25 sq-mm 4-Multi-Wired, 25-25 sq-mm 1-Solid-Core
Degree of Protection	IP2X
Depth	85 mm
Height	69 mm
Mounting Type	DIN Rail
Number of Poles	4
Operating Characteristic	Instantaneous
Power Loss	3.2 W
Rated Current	40 A
Rated Frequency	50 Hz
Rated Impulse Withstand Voltage	4 kV
Rated Insulation Voltage	500 V
Rated Short Circuit Current	6 kA
Rated Voltage	230/400 VAC
Residual Current Type	Type A
Standards and Approvals	IEC/EN 61008
Weight	380 g
Width	70 mm
