Specifications

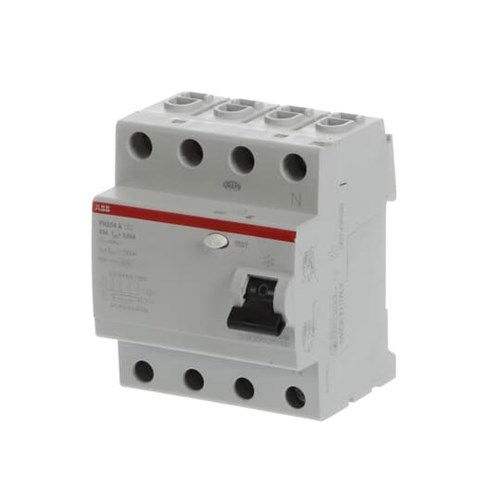

Product Type	Residual Current Circuit Breaker (RCCB)
Brand	ABB
Series	FH200
Electrical Endurance	10000 cycle
No. of Poles (Total)	4P
Rated Impulse Withstand Voltage (Uimp)	4 kV
Rated Insulation Voltage (Ui)	500 V AC
Reverse Connection of Supply Possible	Yes
Breaking Capacity	1 kA
Power Loss	4.4 W
Rated Current	63 A
Rated Frequency	50 Hz
Rated Short Circuit Current	6 kA
Rated Voltage	230/400 V AC
Terminal Type	Failsafe bidirectional cylinder-lift terminals, top and bottom (shock protected)
Residual Current Type	Type A
Rated Residual Current	30 mA
Type of Residual Current	Type A
Operation Mode	Instantaneous
Conductor Cross Section Flexible	25 mm²
Conductor Cross Section Solid Core	25 mm²
Connecting Capacity	Busbar 10 sq-mm, Rigid 25-25 sq-mm, Flexible 25-25 sq-mm
Mechanical Endurance	20000 cycle
Mounting Type	DIN Rail
Depth	69 mm
Height	85 mm
Weight	0.350 kg
Width	70 mm
Width in No. of Modular Spacing	4
Pole Width	17.5 mm
Rated Surrounding Temperature Without Derating	-5 to 40 °C
Storage Temperature	-40 to 70 °C
Operating Temperature	-25 to 55 °C
IP Rating	IP20; IP40
Standards and Approvals	IEC/EN 61008; AS/NZS 61008
