Specifications

Rated Short-Circuit Breaking Capacity (Icn) acc. To IEC/EN 61009-1	6 kA
Product Type	RCBO
Brand	ABB
Series	GSH201
No. of Poles (Total)	1P+N
Rated Current	16 A
Rated Frequency	50 / 60 Hz
Rated Voltage	230/240 V
Trip Curve	C
Rated Residual Current	30 mA
Type of Residual Current	Type A
Mounting Type	DIN rail
Depth	69 mm
Height	85 mm
Weight	0.171 kg
Width	35 mm
Width in No. of Modular Spacing	2
Pole Width	18 mm
Rated Surrounding Temperature Without Derating	30°C
Storage Temperature	-40…+70°C
Operating Temperature	-25 … 55°C
IP Rating	IP2X, IP4X
Standards and Approvals	IEC 60898-1, IEC/EN 60664-1

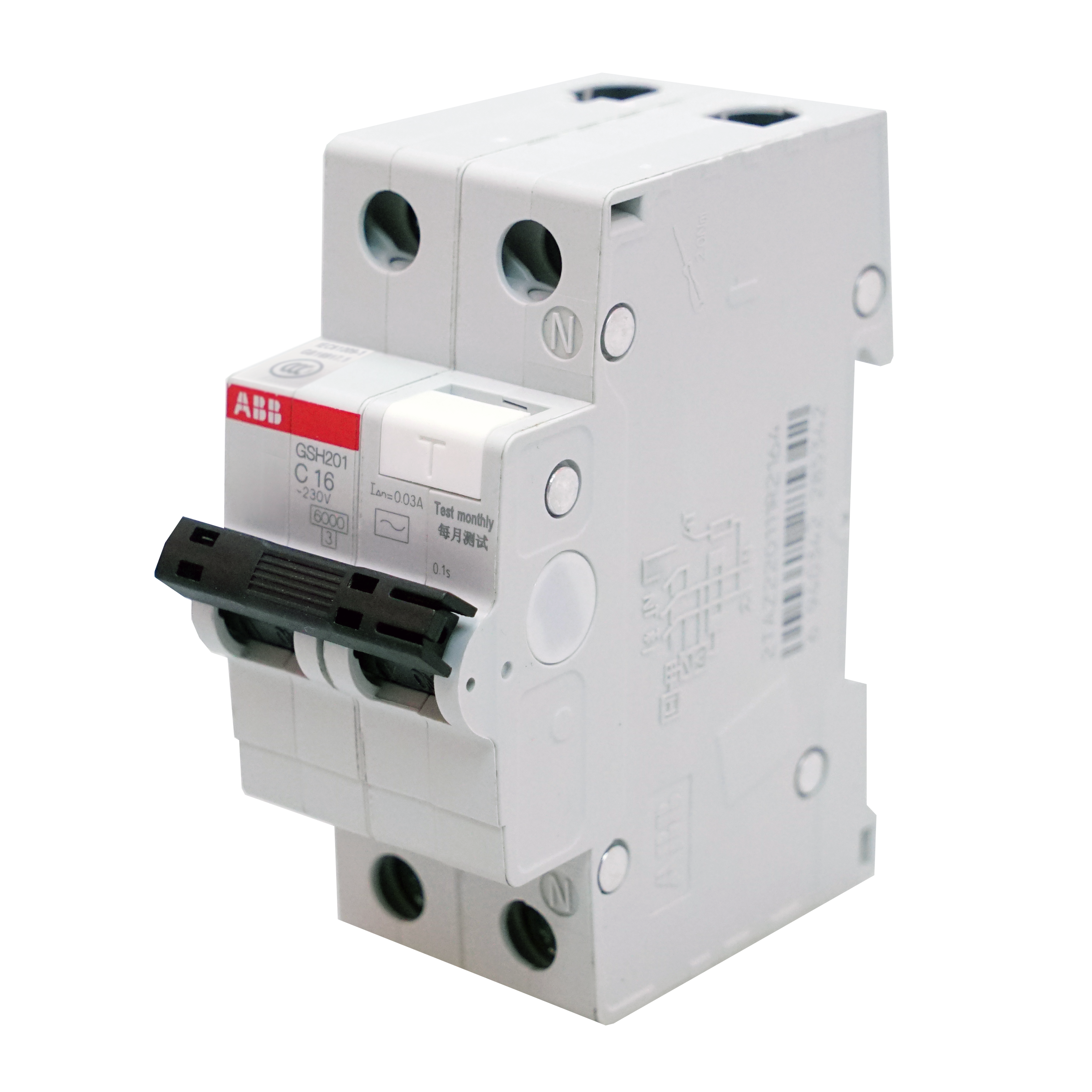

ABB GSH201C16A30 Residual Current Breaker with Overcurrent 6 kA 1P+N-P 30mA 16A C-Curve TypeA DIN Rail Mount IP20
