Specifications

Product Type	POWER SUPPLY MODULE
Brand	ABB
Application	Power Supply
Communication Interface	InSiteModularBus
Output Power	10 W
Product Compatibility	SCU200
Rated Current (In)	0.18 A
Rated Operational Current AC-15 (Ie)	0.7 A
Power Consumption	0 kW
Rated Frequency	50/60 ± 5% Hz
Supply Voltage	240 V
Compatibility	SCU200
Mounting Type	DIN-Rail
Depth	64.9 mm
Height	87 mm
Weight	0.077 kg
Width	17.4 mm
IP Rating	IP20
Ambient Temperature	Operation -25 ... 60 °C
Standards and Approvals	EN 61010-1 / IEC 61010-1 EN IEC 61326-1

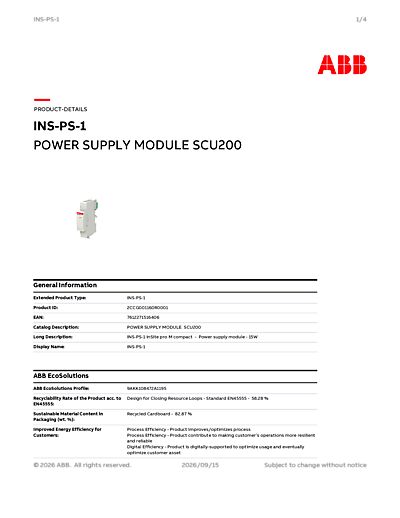

ABB INS-PS-1 POWER SUPPLY MODULE 15W FOR INSITE PRO M COMPACT SCU200
