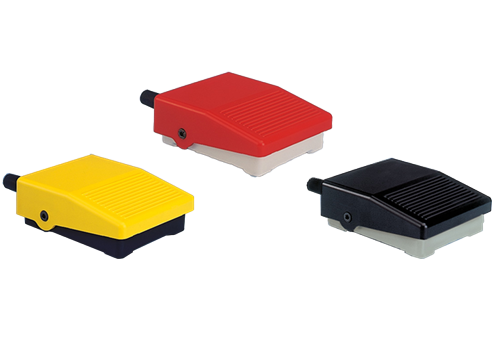

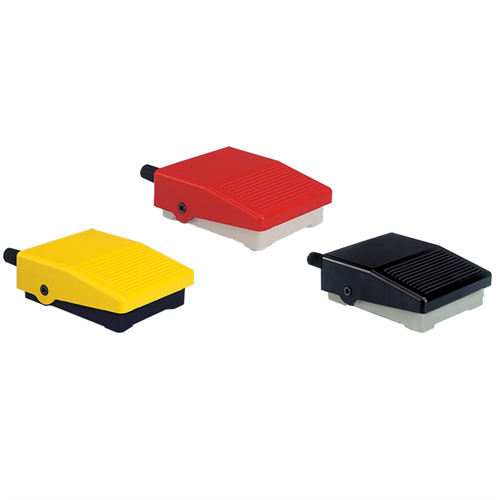

ABB IPM1Y Mini Foot Switch

Product Code: IPM1Y

1

Specifications

Product Type	Mini foot switch
Brand	ABB
Series	IPM
No. of Auxiliary Contacts NO	1
No. of N/C Contacts	1
No. of N/O Contacts	1
Rated Current	60 mA at 230 V DC, 3 A at 250 V AC
Rated Voltage	250 V
Mechanical Durability	10000000 Operations
Actuator Type	Free movement
Housing Colour	Yellow cover, black base
Housing Material	Self-extinguishing ABS
Depth	101 mm
Height	35 mm
Width	75 mm
Operating Temperature	-10 to 70 degC
IP Rating	IP40

Documents

IPD Product Catalogue V17

ABB Datasheet

Certificate

EU Declaration of Conformity

REACH Certification

RoHS Certification
