Specifications

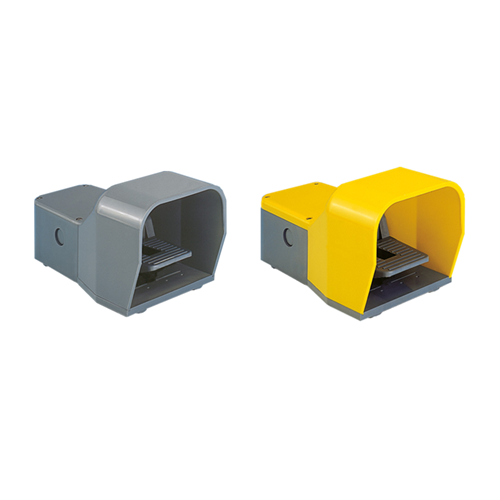

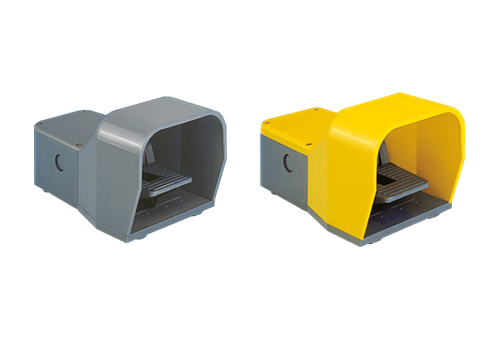

Product Type	Covered foot switch
Brand	ABB
Series	IPS
No. of Auxiliary Contacts NO	2
No. of N/C Contacts	2
No. of N/O Contacts	2
Rated Current	4 A at 400 V AC, 5.5 A at 130 V AC, 10 A at 24 V AC
Rated Frequency	50/60 Hz
Rated Voltage	600 V, 690 V
Mechanical Durability	30000000 Operations
Actuator Type	Free movement
Housing Colour	Yellow cover, grey base
Housing Material	Shock-resistant Bayblend FR 90 (alloyed polycarbonate and ABS)
Depth	280 mm
Height	138 mm
Weight	1.2 kg
Width	140 mm
Operating Temperature	-10 to 70 degC
IP Rating	IP65
