Specifications

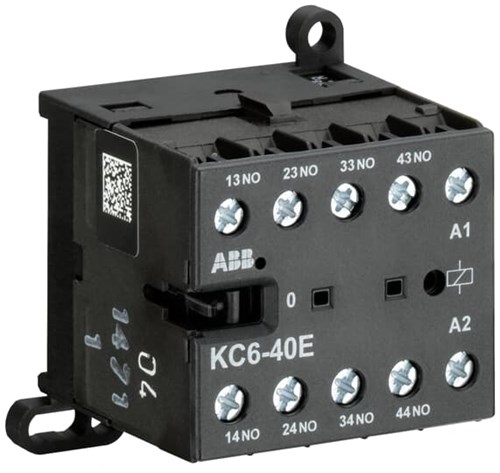

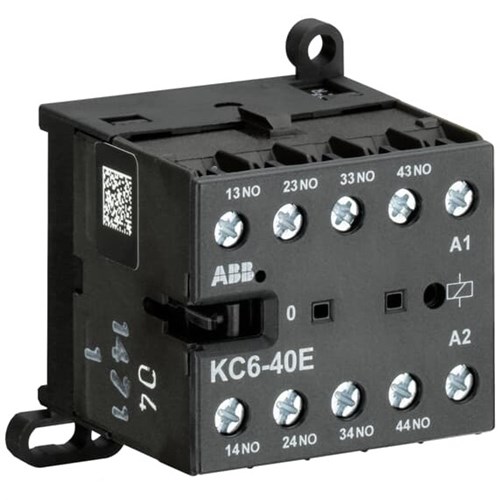

Product Type	Mini Contactor Relays
Brand	ABB
No. of N/C Contacts	0
No. of N/O Contacts	4
No. of Poles (NO/NC)	4NO/0NC
Rated Control Supply Voltage (Us)	110 ... 125 V DC
Rated Operational Current AC-15 (Ie)	4 A
Rated Frequency	50/60 Hz
Depth	46.5 mm
Height	57.5 mm
Weight	0.175 kg
Width	52.5 mm
Ambient Temperature	-25 ... +55 °C
Standards and Approvals	IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-4-1 IEC 60335-2-40 A2L
