Specifications

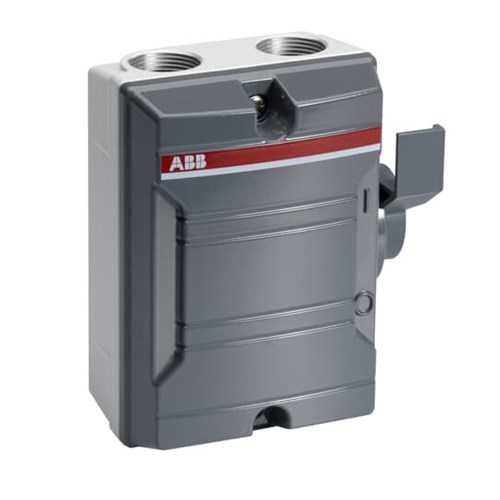

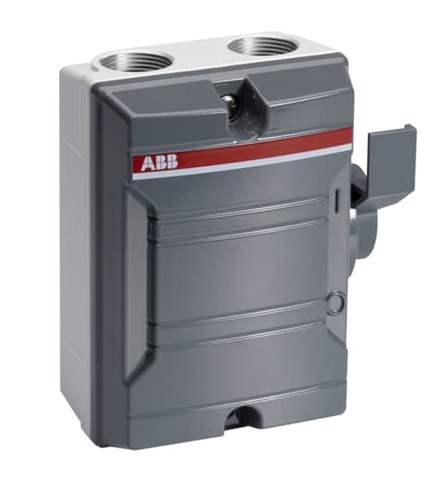

Product Type	Switch Disconnector
Brand	ABB
Cable Cross Section	0.75-10 sq-mm
Cable Entry	Top, Bottom
Cable Size	M25
Colour	Grey
Connecting Capacity	Screw Clamp 0.75-10 sq-mm Screw Clamp/PE Terminal 1 pc, 0.75-10 sq-mm
Contact Configuration	1NO+0NC
Degree of Protection	IP65
Handle Type	Side Operated
Height	130 mm
Length	60 mm
Material	Aluminium
Neutral Type	Switchable
Number of Poles	4
Rated Current	25 A
Rated Impact Resistance	IK09
Rated Impulse Withstand Voltage	8 kV
Rated Insulation Voltage	690 V
Rated Power	7.5 kW
Rated Short Time Withstand Current	0.5 kA
Rated Voltage	690 V
Short Circuit Capacity	0.71 kA
Standards and Approvals	IEC 60947-1, -3
Tightening Torque	1.2 N-m
Weight	0.56 kg
Width	111 mm
Wire Stripping Length	7 mm
