Specifications

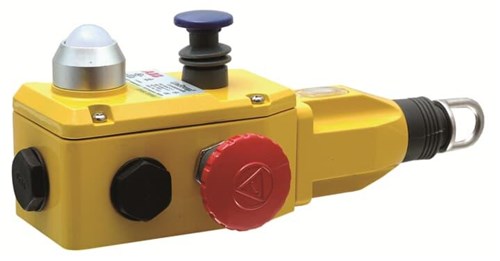

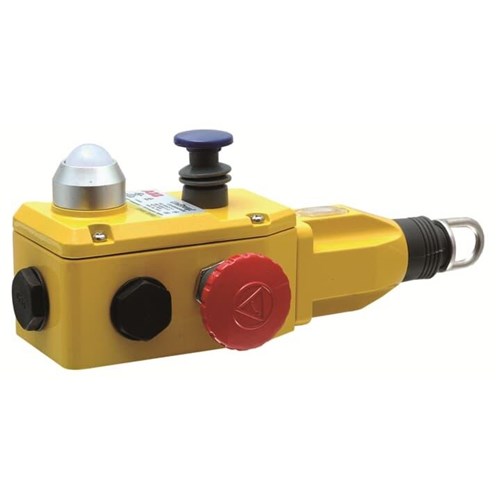

Product Type	Pull wire emergency stop switch
Brand	ABB
Series	LineStrong
No. of N/C Contacts	2
No. of N/O Contacts	2
Contact Configuration	2NC+2NO
Rated Voltage	24 V DC
Terminal Type	Clamp, up to 2.5 mm2 conductors
Cable Entry	3 x M20 x 1.5
Conduit Inlets	3 x M20
Contact Material	Silver
Housing Colour	Yellow
Housing Material	Die cast
Material	Yellow Die Cast Aluminum Alloy
Vibration Resistance acc. To IEC/EN 60068-2-6	10-500 Hz
Depth	86 mm
Height	239 mm
Weight	880 g
Width	96 mm
Operating Temperature	-25 to 80 degC
IP Rating	IP67
