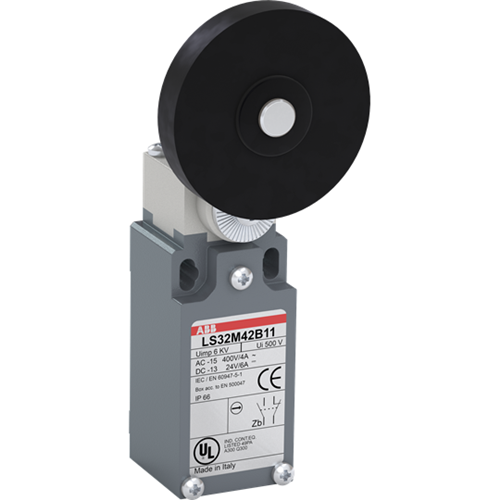

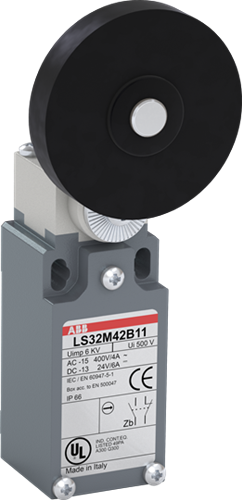

ABB LS32M42B11 Limit Switch 50mm Plastic Roller Lever 1NO-1NC 50mm W Metal

Product Code: LS32M42B11

  • Rated current options: 3.1 A, 10 A, 5.5 A, 3 A
  • Durable metal housing with IP66 protection
  • Operates from -25 to 70°C
  • Complies with CE and UL standards
  • Snap action switch with roller lever actuator
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Limit Switch
Brand ABB
Actuator Material Plastic
Actuator Type 50 mm Roller Lever
Contact Configuration 1NO+1NC
Degree of Protection IP66
Height 124 mm
Housing Material Metal
Length 50 mm
Mechanical Durability 10000000 Operations
Mounting Type 30 mm EN 50047
Operational Temperature -25 to 70 deg C
Rated Current 3.1 A, 10 A, 5.5 A, 3 A
Standards and Approvals CE,UL
Switching Type Snap Action
Weight 0.193 kg
Width 50 mm

Description

<p>For professionals seeking a reliable and robust switch for industrial and commercial applications, this product offers an impressive blend of durability and functionality. Designed with precision, it caters to various technical requirements, ensuring seamless integration into your existing systems.</p><p>The switch accommodates multiple rated currents: 3.1 A, 10 A, 5.5 A, and 3 A. This flexibility allows you to select the appropriate current rating that aligns with your specific application needs. Its mounting type is compliant with the EN 50047 standard at a size of 30 mm, facilitating straightforward installation in diverse environments.</p><p>Constructed from high-quality metal housing material, this switch promises longevity and resilience against harsh conditions. It boasts an IP66 degree of protection, safeguarding it against dust ingress and powerful water jets—a feature crucial for demanding industrial settings.</p><p>Operating efficiently within a temperature range of -25 to 70 degrees Celsius, this switch performs reliably across varied climatic conditions without compromising its operational integrity.</p><p>In terms of standards and approvals, the product meets CE and UL certifications—assuring compliance with international safety regulations and quality benchmarks.</p><p>Compact yet sturdy in design, it has dimensions of 50 mm in length by 50 mm in width by 124 mm in height while weighing just 0.193 kg—making it easy to incorporate into tight spaces without adding significant weight.</p><p>With a contact configuration of one normally open (1NO) plus one normally closed (1NC), it provides versatile switching capabilities suitable for numerous applications. The snap action switching type ensures quick response times essential for efficient operation.</p><p>The actuator features a robust design with a plastic roller lever measuring at an ample size of 50 mm—ideal for consistent performance in repetitive tasks or high-cycle operations.</p><p>Remarkably durable mechanically speaking; this product can withstand up to ten million operations—a testament to its engineering excellence aimed at long-term use even under strenuous conditions.</p>
