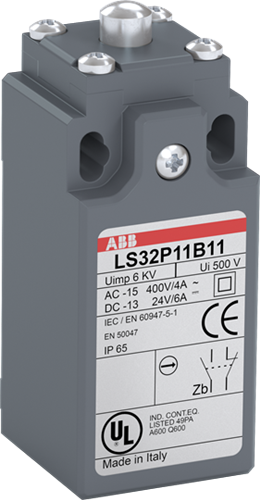

ABB LS32P11B11 Limit Switch Plain Steel Plunger 1NO-1NC 30mm W Plastic

Product Code: LS32P11B11

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Limit Switch
Brand ABB
Actuator Material Steel
Actuator Type Plain Plunger
Contact Configuration 1NO+1NC
Degree of Protection IP65
Height 73 mm
Housing Material Plastic
Length 30 mm
Mechanical Durability 15000000 Operations
Mounting Type 30 mm EN 50047
Operational Temperature -25 to 70 deg C
Rated Current 3.1 A, 10 A, 5.5 A, 3 A
Switching Type Snap Action
Weight 0.063 kg
Width 30 mm

Documents

IPD Product Catalogue V17
ABB Catalogue
ABB Datasheet

Certificate

Certificate of Compliance
EU Declaration of Conformity
REACH Certification
RoHS Certification
