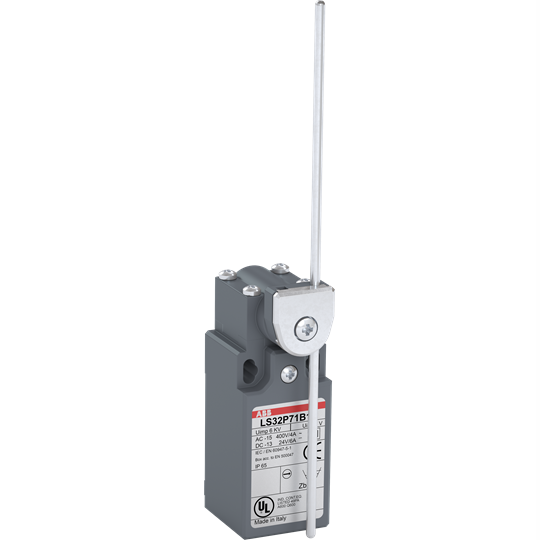

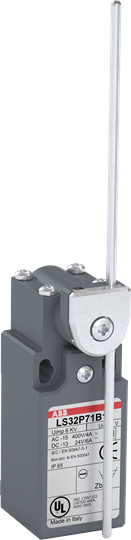

ABB LS32P71B11 Limit Switch 3mm Adjustable Stainless Steel Rod Lever 1NO-1NC 30mm W Plastic

Product Code: LS32P71B11

  • Rated for multiple currents: 3.1 A, 10 A, 5.5 A, 3 A
  • Durable plastic housing with IP65 protection
  • Operates in temps from -25 to 70°C
  • CE and UL approved for safety
  • Long-lasting with 10 million operations
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Limit Switch
Brand ABB
Actuator Material Stainless Steel
Actuator Type 3 mm Adjustable Rod Lever
Contact Configuration 1NO+1NC
Degree of Protection IP65
Height 155.5 mm
Housing Material Plastic
Length 41 mm
Mechanical Durability 10000000 Operations
Mounting Type 30 mm EN 50047
Operational Temperature -25 to 70 deg C
Rated Current 3.1 A, 10 A, 5.5 A, 3 A
Standards and Approvals CE,UL
Switching Type Snap Action
Weight 0.091 kg
Width 30 mm

Description

<p>When selecting a product for industrial or commercial applications, precision and reliability are paramount. This particular switch offers an excellent balance of durability and functionality, making it a solid choice for various technical environments.</p><p>At the heart of this switch is its impressive rated current versatility, accommodating 3.1 A, 10 A, 5.5 A, and 3 A capacities. This range allows it to be integrated into diverse systems with varying power requirements seamlessly. The mounting type adheres to the 30 mm EN 50047 standard, ensuring compatibility with a wide array of setups.</p><p>Constructed from robust plastic housing material, this switch is designed to withstand demanding conditions while maintaining operational integrity. It boasts an IP65 degree of protection, which ensures resistance against dust ingress and low-pressure water jets from any direction—a critical feature for maintaining performance in challenging environments.</p><p>The operational temperature range extends from -25&amp;#176;C to 70&amp;#176;C, making it suitable for both cold storage facilities and high-temperature industrial settings without compromising on performance or safety standards.</p><p>Compliant with CE and UL standards and approvals, this switch meets rigorous international safety benchmarks that attest to its quality and reliability in professional applications.</p><p>Weighing just 0.091 kg with dimensions of 41 mm in length, 30 mm in width, and standing at a height of 155.5 mm, the compact design does not compromise on ease of installation or space efficiency within equipment panels.</p><p>The contact configuration features a single normally open (NO) contact paired with a normally closed (NC) contact—ideal for straightforward integration into control circuits requiring basic logic operations or interlock functions.</p><p>Employing snap action switching type ensures rapid response times crucial for precise control tasks where timing accuracy is vital. The actuator type features a durable stainless steel construction adjustable rod lever measuring at 3 mm—offering flexibility in engagement angles while ensuring long-lasting mechanical performance even under frequent use scenarios.</p><p>This product&amp;#39;s mechanical durability stands out significantly with an impressive lifespan rated at ten million operations—demonstrating its capability to handle intensive usage over extended periods without failure concerns commonly associated with lesser components.</p><p>In summary: if your application demands reliable operation across varied electrical loads combined with robust environmental protection credentials—all wrapped up within an efficient form factor—this switch represents an ideal solution tailored towards meeting those needs effectively within professional contexts.</p>

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
