Specifications

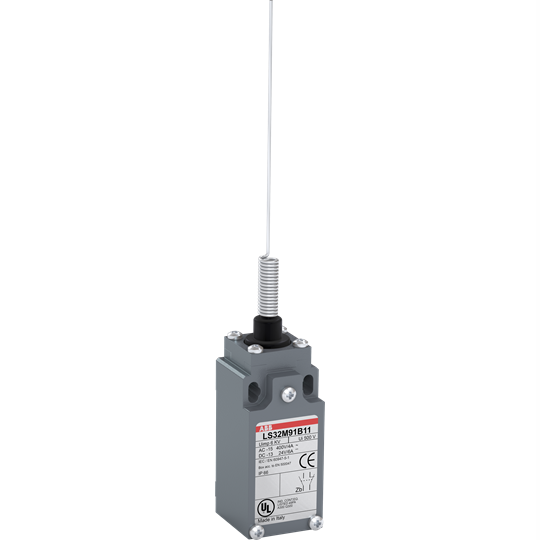

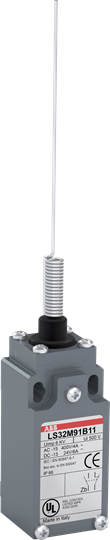

Product Type	Limit switch
Brand	ABB
Series	LS30
No. of N/C Contacts	1
No. of N/O Contacts	1
Type of Switching Output	Snap Action
Contact Configuration	1NO+1NC
Rated Current	3.1 A, 10 A, 5.5 A, 3 A
Change-Over Contacts	0
Mechanical Durability	>5000000 Operations
Actuator Type	Multidirectional stainless-steel spring with rigid end
Device Construction	Stainless Steel
Housing Material	Metal
Mounting Type	30 mm EN 50047
Depth	33 mm
Height	194 mm
Length	33 mm
Weight	169 g
Width	30 mm
Operating Temperature	-25 to 70 degC
IP Rating	IP66
Standards and Approvals	CQC,Cul,CCC,CE,UKCA
