Specifications

Product Type	Limit switch
Brand	ABB
Series	LS30
No. of N/C Contacts	1
No. of N/O Contacts	1
Type of Switching Output	Snap Action
Contact Configuration	1NO+1NC
Rated Current	3.1 A, 10 A, 5.5 A, 3 A
Change-Over Contacts	0
Mechanical Durability	>5000000 Operations

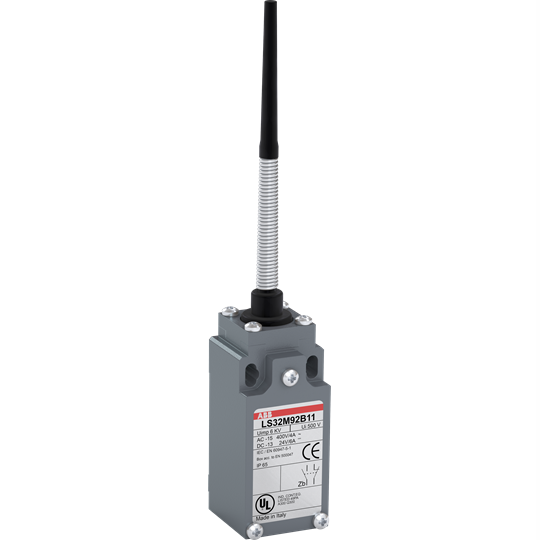

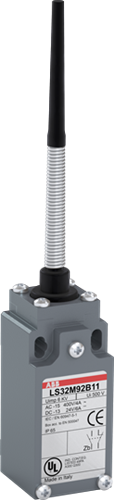

Actuator Type	Multidirectional stainless-steel spring with insulated tip
Device Construction	Stainless Steel
Housing Material	Zinc alloy (Zamak)
Mounting Type	30 mm EN 50047
Depth	33 mm
Height	174 mm
Length	33 mm
Weight	171 g
Width	30 mm
Operating Temperature	-25 to 70 degC
IP Rating	IP66
Standards and Approvals	CE,UL
