Specifications

Product Type	Limit switch
Brand	ABB
Series	LS40
No. of Auxiliary Contacts NO	1
No. of N/C Contacts	1
No. of N/O Contacts	1
Type of Switching Output	Snap Action
Rated Current	3.1 A, 10 A, 5.5 A, 3 A
Rated Frequency	50/60 Hz
Terminal Type	Screw
Change-Over Contacts	0
Mechanical Durability	10000000 Operations

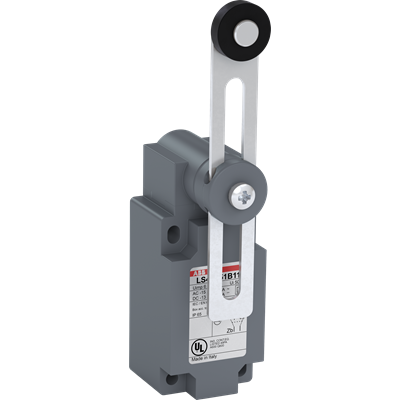

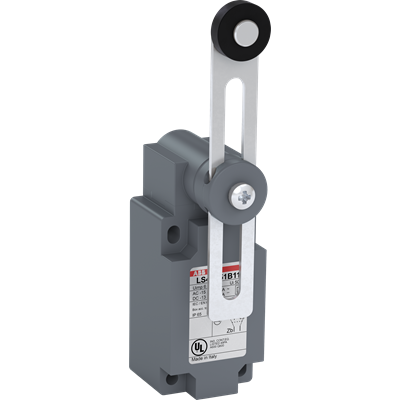

Actuator Type	Adjustable 22 mm polyamide roller lever
Depth	62 mm
Height	135 mm
Length	62 mm
Weight	164 g
Width	41 mm
Operating Temperature	-25 to 70 degC
IP Rating	IP65
