Specifications

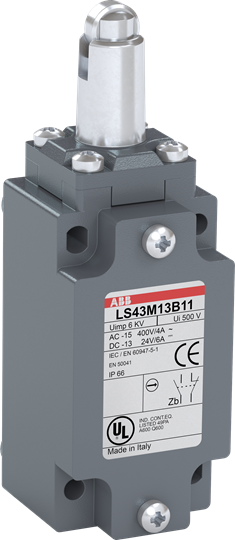

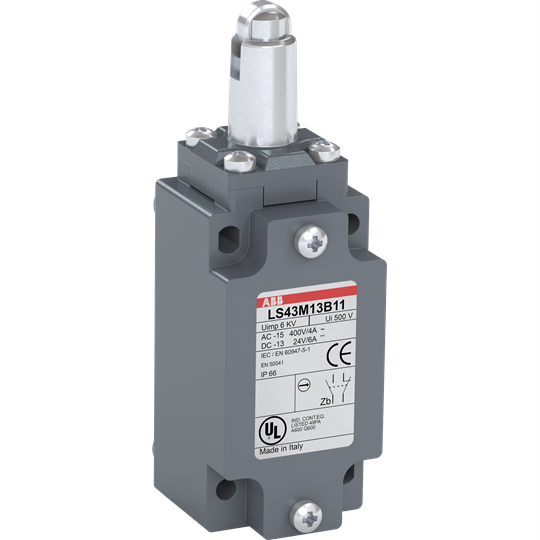

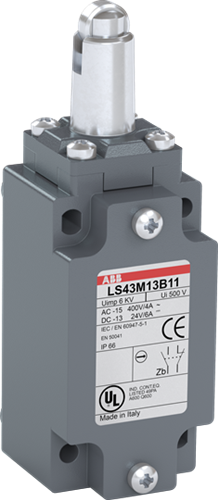

Product Type	Limit switch
Brand	ABB
Series	LS40
No. of N/C Contacts	1
No. of N/O Contacts	1
Type of Switching Output	Snap Action
Contact Configuration	1NO+1NC
Rated Current	3.1 A, 10 A, 5.5 A, 3 A
Change-Over Contacts	0
Mechanical Durability	25000000 Operations
Actuator Type	Stainless-steel roller plunger
Device Construction	Stainless Steel
Housing Material	Zinc alloy (Zamak)
Mounting Type	40 mm EN 50041
Depth	44 mm
Height	120 mm
Length	44 mm
Weight	229 g
Width	40 mm
Operating Temperature	-25 to 70 degC
IP Rating	IP66
Standards and Approvals	CE,UL
