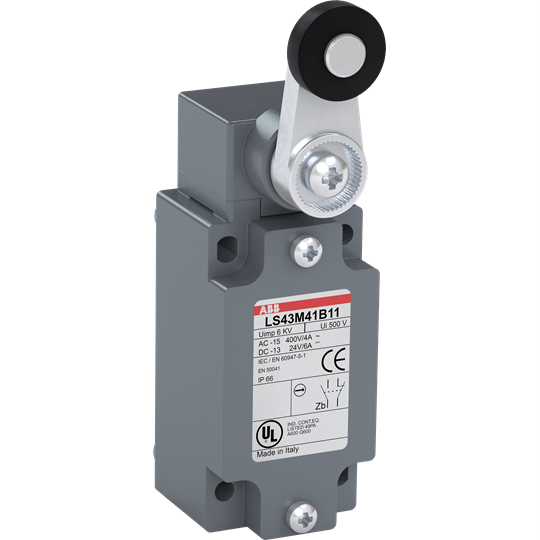

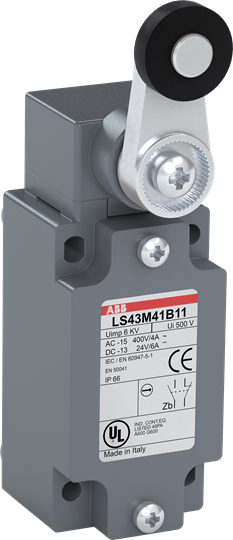

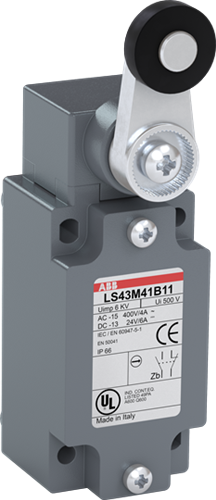

ABB LS43M41B11 Limit Switch 22mm Plastic Roller Lever 1NO-1NC 40mm W Metal

Product Code: LS43M41B11

1

Specifications

Product Type	Limit switch
Brand	ABB
Series	LS40
No. of N/C Contacts	1
No. of N/O Contacts	1
Type of Switching Output	Snap Action
Contact Configuration	1NO+1NC
Rated Current	3.1 A, 10 A, 5.5 A, 3 A
Change-Over Contacts	0
Mechanical Durability	25000000 Operations
Actuator Type	22 mm plastic roller lever
Device Construction	Plastic
Housing Material	Zinc alloy (Zamak)
Mounting Type	40 mm EN 50041
Depth	60 mm
Height	133 mm
Length	60 mm
Weight	279 g
Width	40 mm
Operating Temperature	-25 to 70 degC
IP Rating	IP66
Standards and Approvals	CE,UL

Documents

IPD Product Catalogue V17

ABB Catalogue

ABB Datasheet

Certificate

Certificate of Compliance

EU Declaration of Conformity

REACH Certification

RoHS Certification
