Specifications

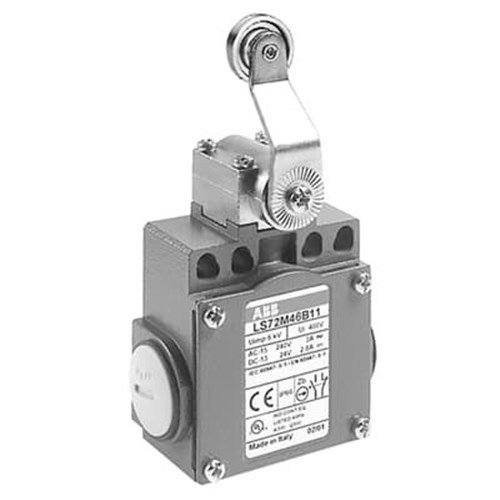

Product Type	Limit switch
Brand	ABB
Series	LS Series
No. of N/C Contacts	1
No. of N/O Contacts	1
Rated Current	3.1 A, 10 A, 5.5 A, 3 A
Terminal Type	M3.5 Pozidriv 2 screw with cable clamp
Change-Over Contacts	0
Actuator Type	18 mm zinc-plated steel roller with bent lever
Housing Material	Metal casing
Height	115.5 mm
Length	36 mm
Weight	340 g
Width	60 mm
Operating Temperature	-25 to 70 degC
IP Rating	IP66
Standards and Approvals	CE,UL
