Specifications

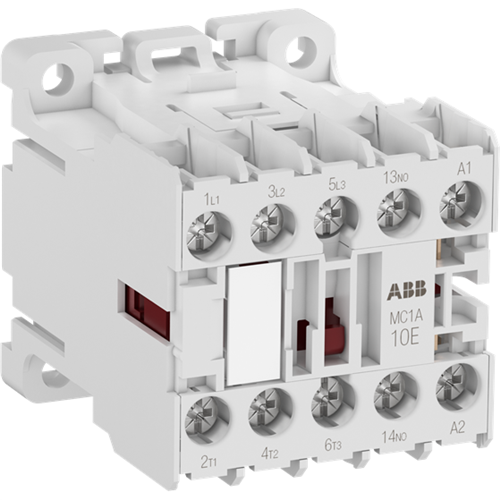

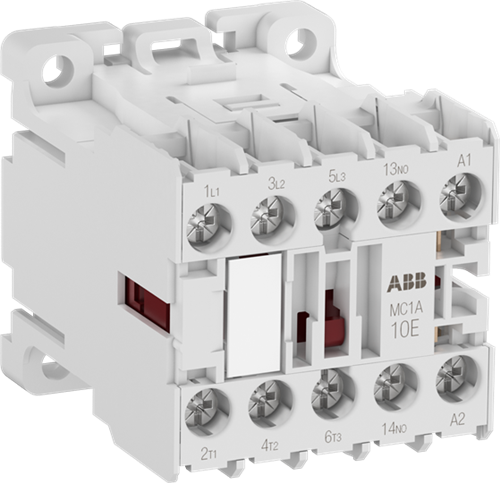

Product Type	Mini Contactors
Brand	ABB
No. of Auxiliary Contacts	1 NO / 0 NC
Rated Control Supply Voltage (Us)	24 V AC
Rated Operational Current AC-1 <= 440V (Ie)	20 A
Rated Operational Current AC-1 <= 690V (Ie)	20 A
Rated Operational Current AC-3 400V (Ie)	0.375
Rated Operational Current AC-3 690V (Ie)	0.20833333333333334
Rated Operational Power AC-3 400V (Pe)	4 kW
Rated Operational Power AC-3 690V (Pe)	4 kW
Rated Frequency	50/60 Hz
No. of Poles	3P
Depth	56 mm
Height	48 mm
Weight	0.17 kg
Width	45 mm
Ambient Temperatures	-40 ... +70 °C
Standards and Approvals	IEC/EN 60947-1IEC/EN 60947-4-1IEC/EN 60947-5-1UL 60947-1UL 60947-4-1UL 60947-5-1
