Specifications

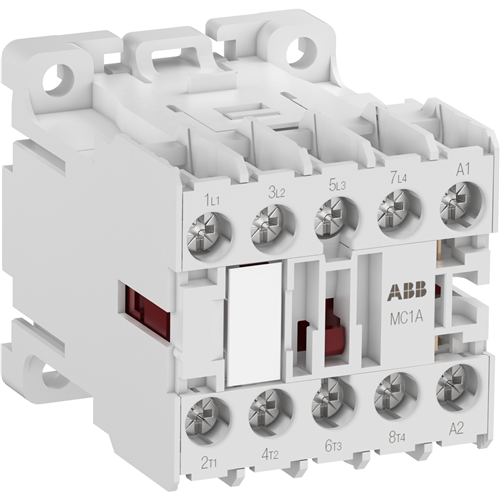

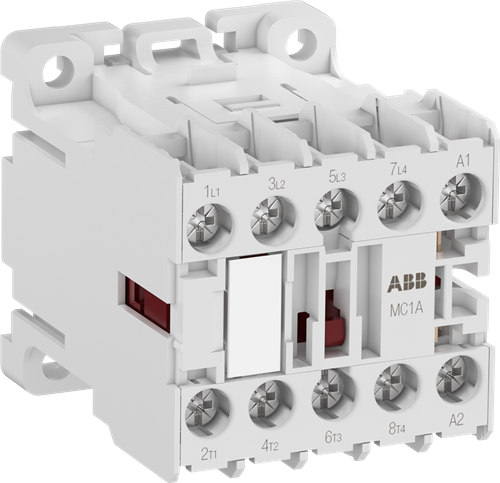

Product Type	Mini Contactor
Brand	ABB
Series	M
Degree of Protection	IP20
Depth	56 mm
Height	48 mm
Mode of Operation	AC
Mounting Type	DIN Rail, Wall
Number of Poles	4
Operational Temperature	-40 to 55 deg C
Power Loss	0.7 W
Rated Current	20 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	750 V
Rated Power	4 kW
Rated Voltage	220-240 VAC
Terminal Type	Screw
Width	45 mm
