Specifications

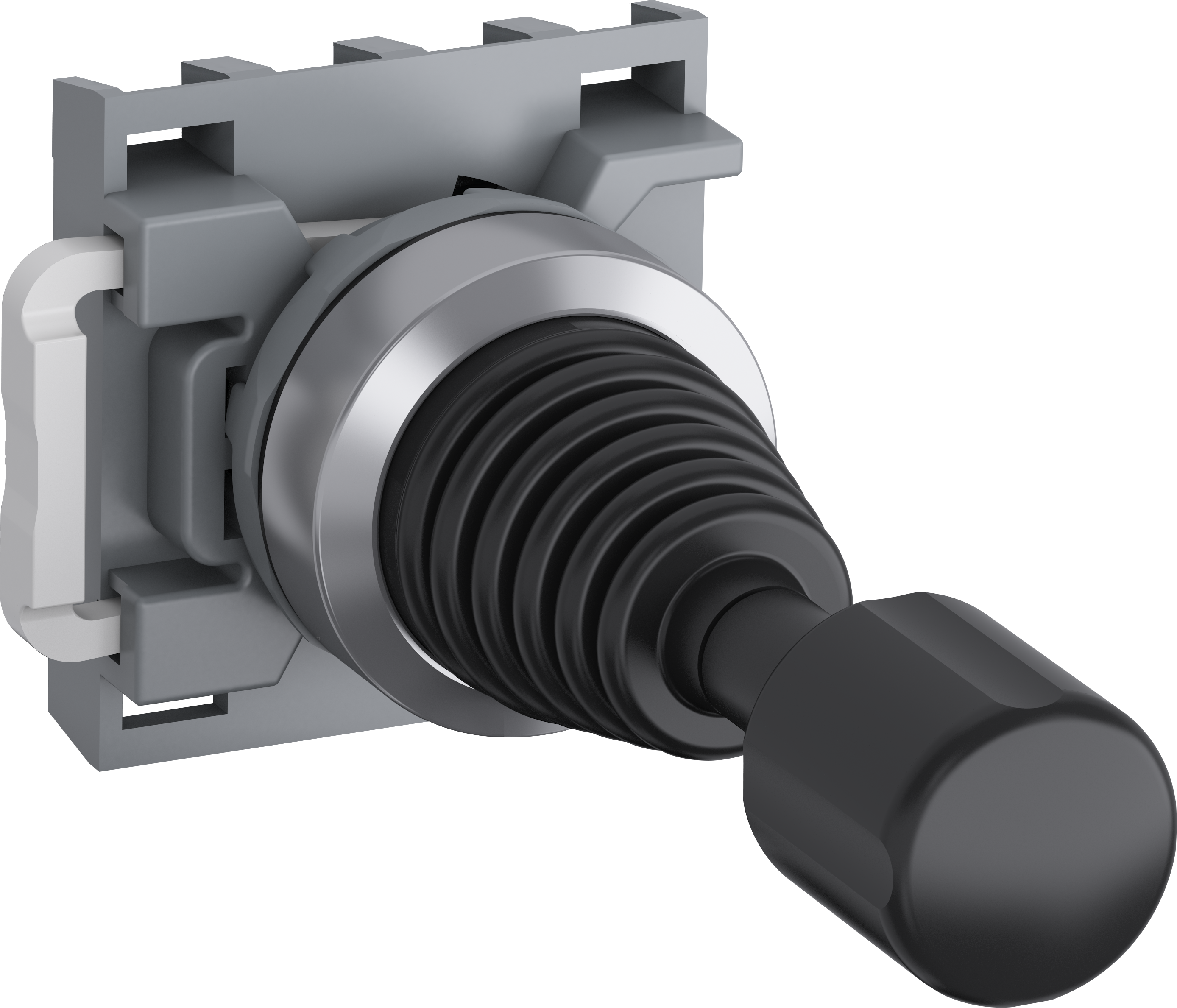

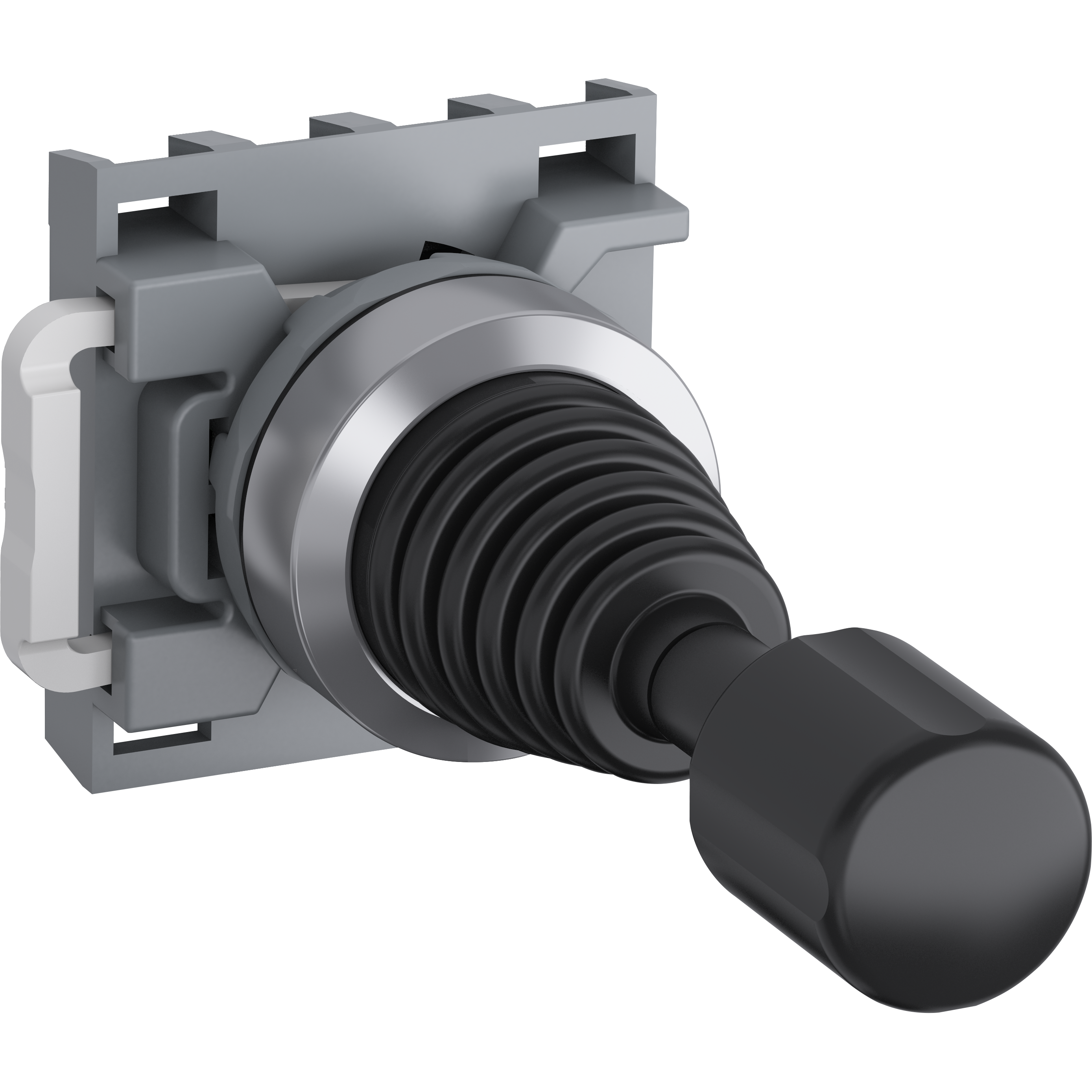

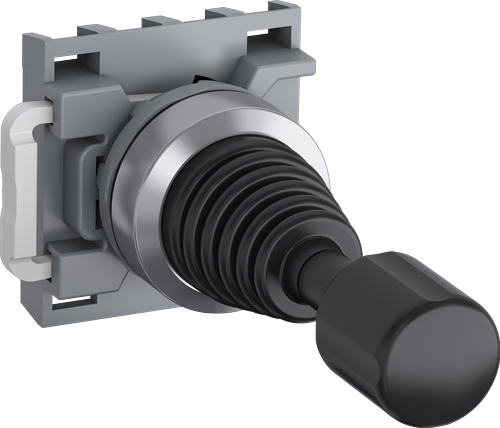

Product Type	Joystick Operator Switch
Brand	ABB
Actuator Type	Joystick Without Latching Function
Bezel Type	Metal
Degree of Protection	Front: IP66, IP67, IP69K
Illumination	Illuminated
Lamp Base	BA9S
Lamp Colour	Green
Material	Bezel: Chrome Metal
Mode of Operation	Momentary 2-Position
Operational Temperature	-30 to 70 deg C
Rated Current	3 mA
Rated Voltage	230 VAC/VDC
Service Life	100000 hrs
Standards and Approvals	CAN/CSA C22.2 #14, IEC/EN 60947-1, IEC/EN 60947-5-1, UL 508
Storage Temperature	-40 to 70 deg C
Suitable For Use With	Power Supply
Weight	0.002 kg
